ASC Pro Extensions

Overview

There are a few factors to consider before purchasing  the ASC Pro.
Please check the Compatibility Guide and the Buyers Guide.

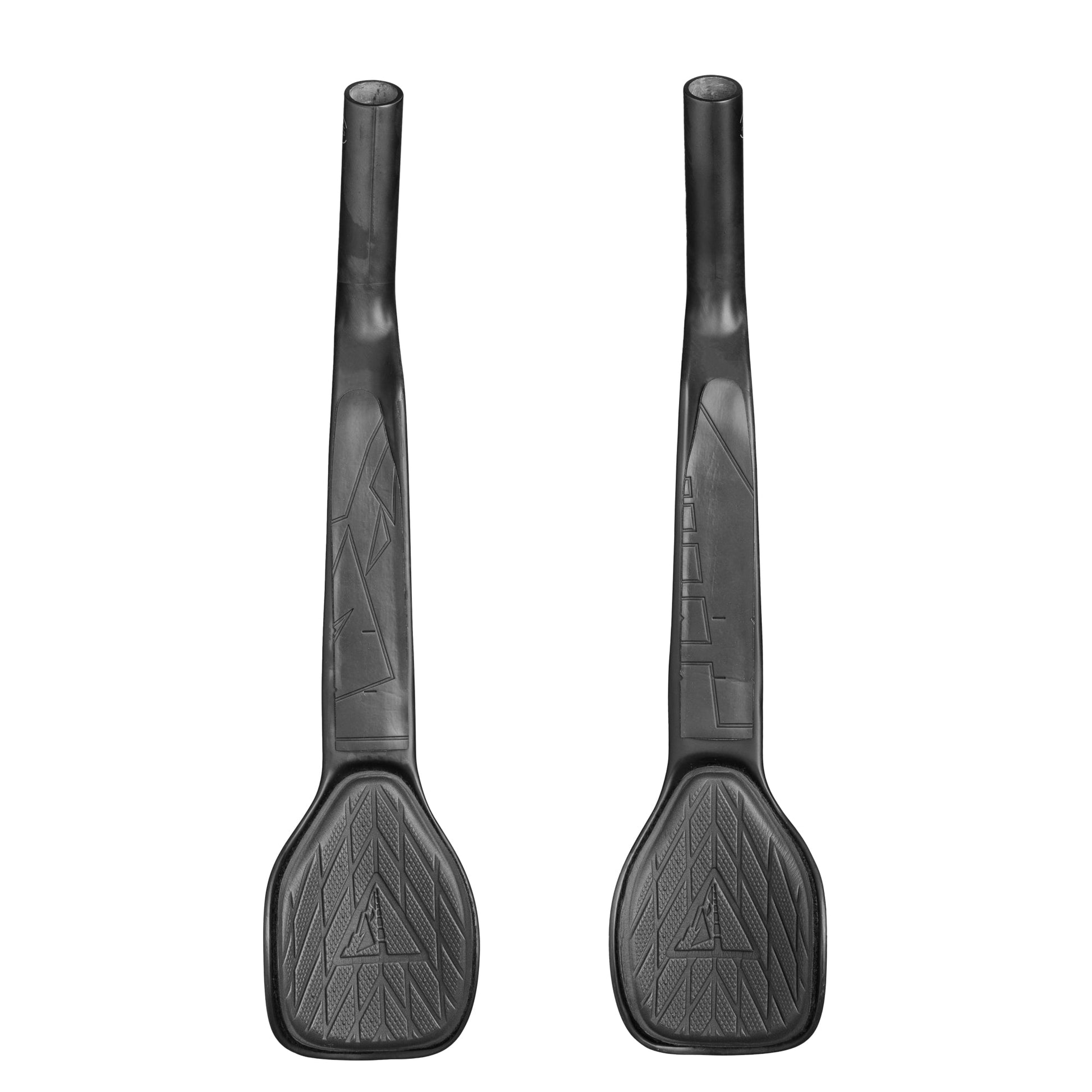

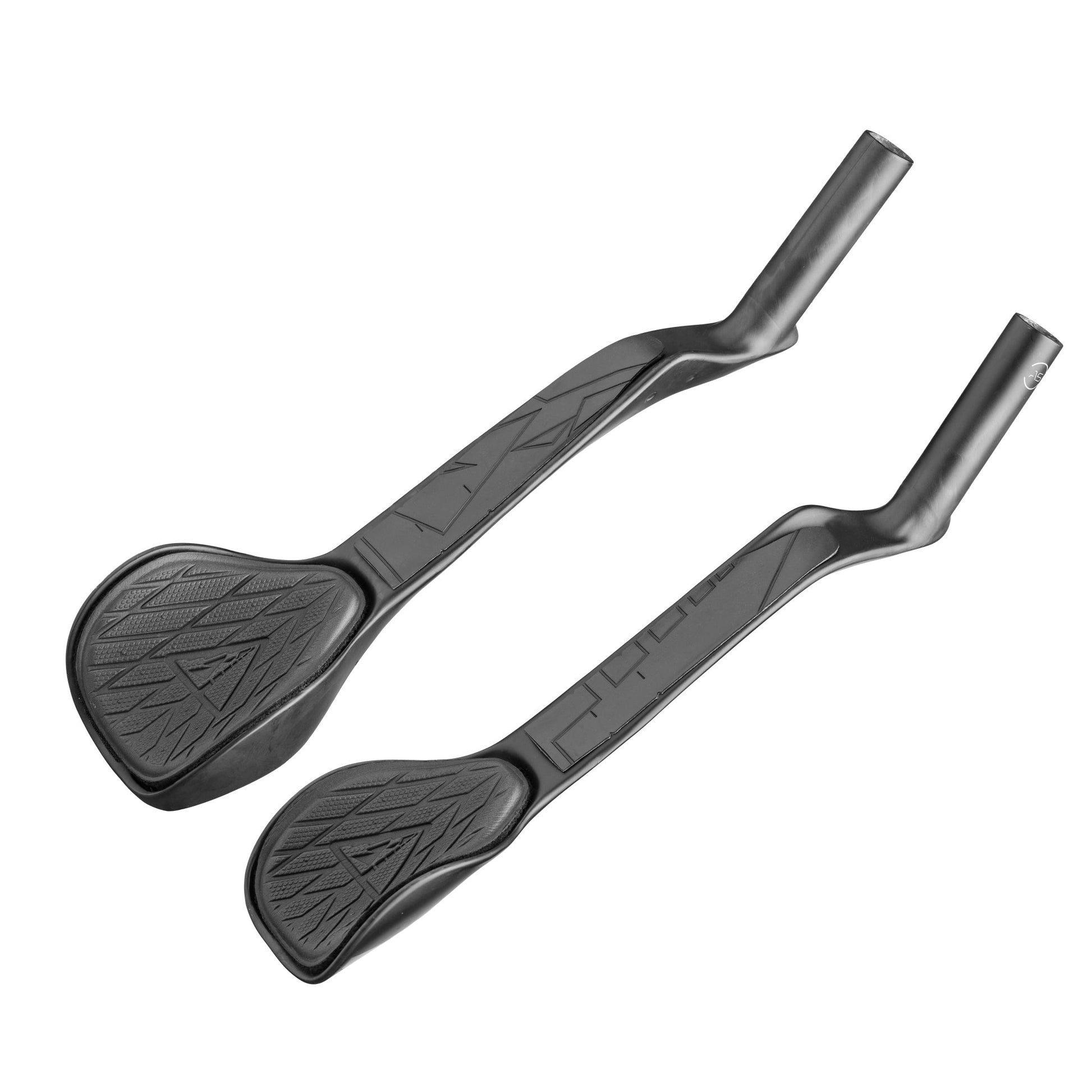

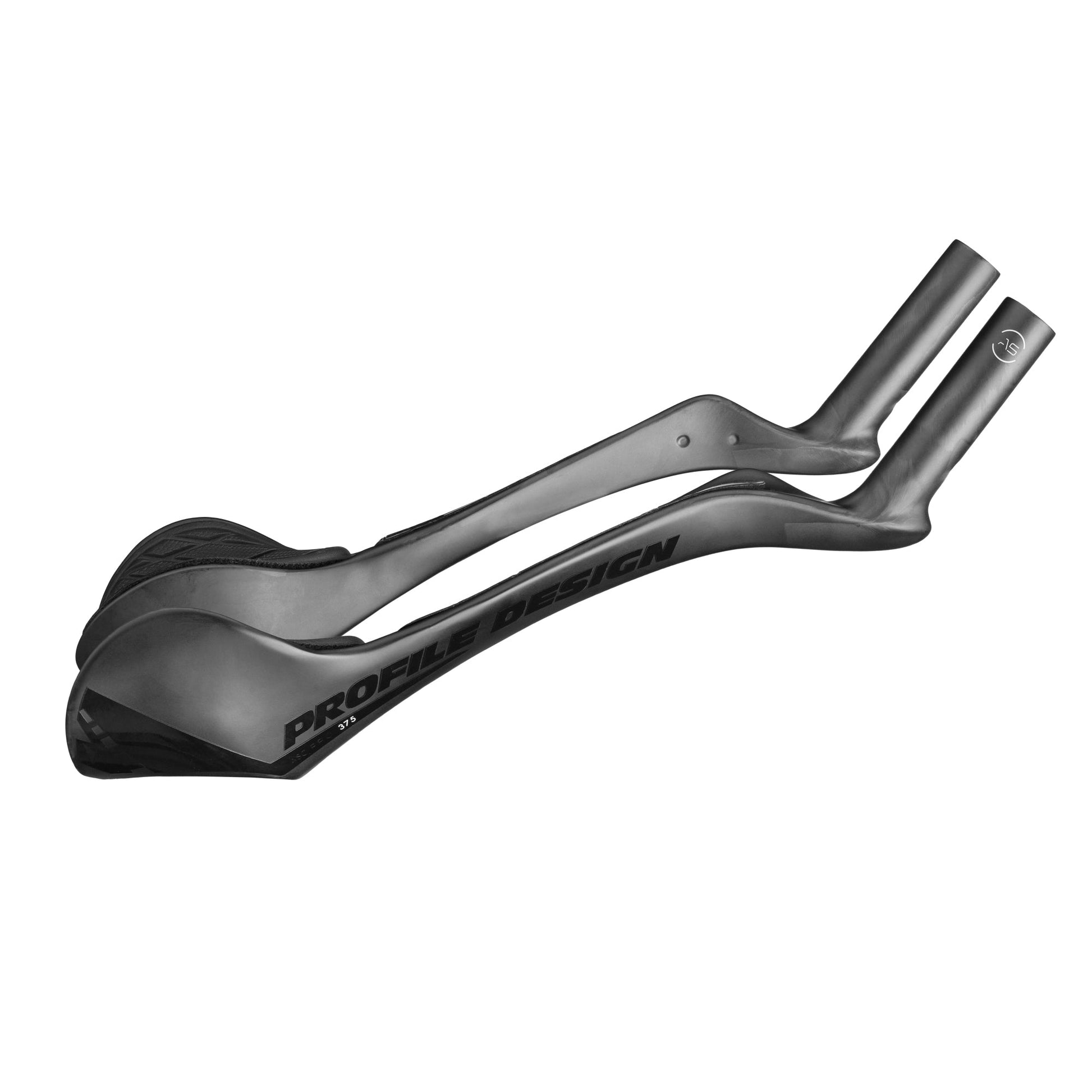

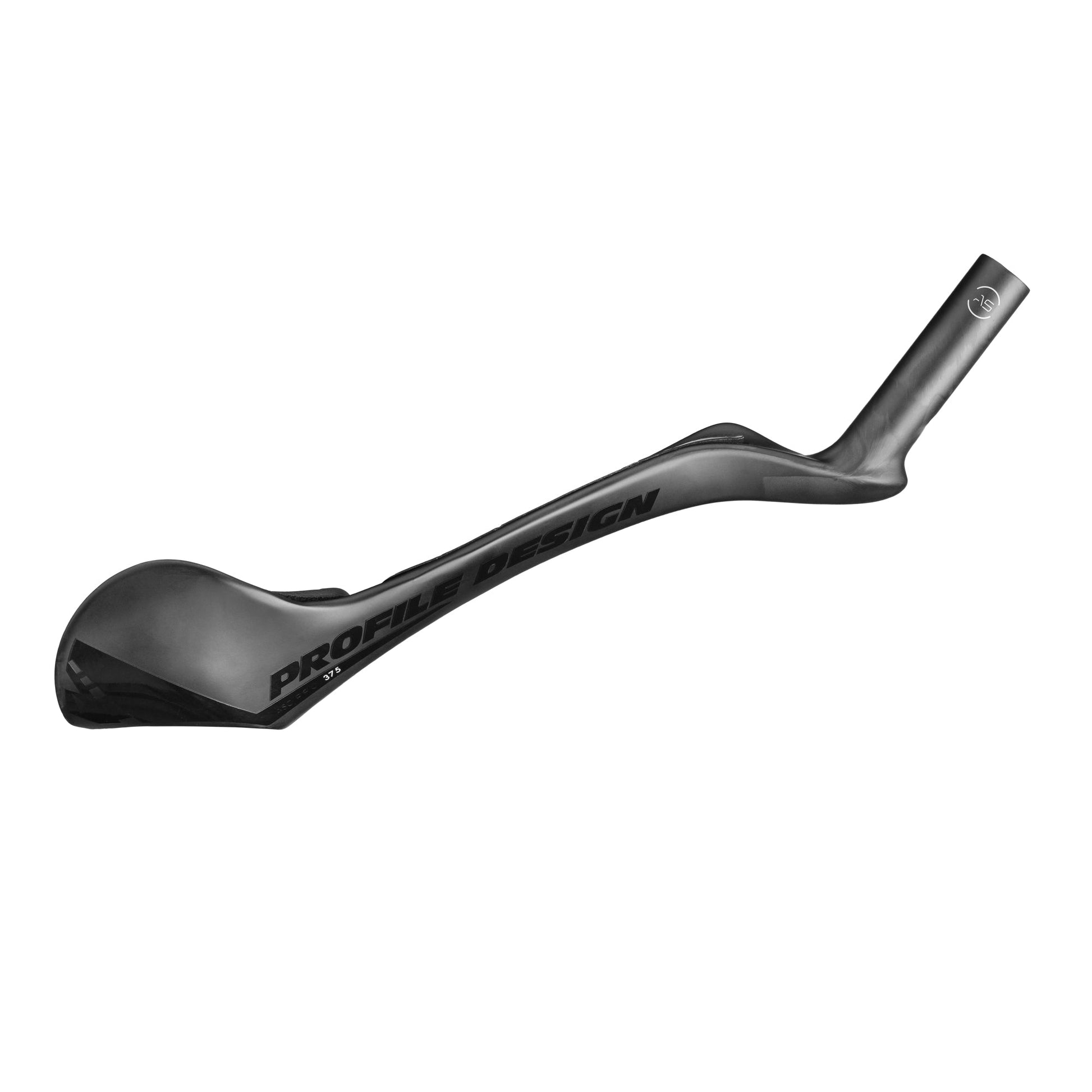

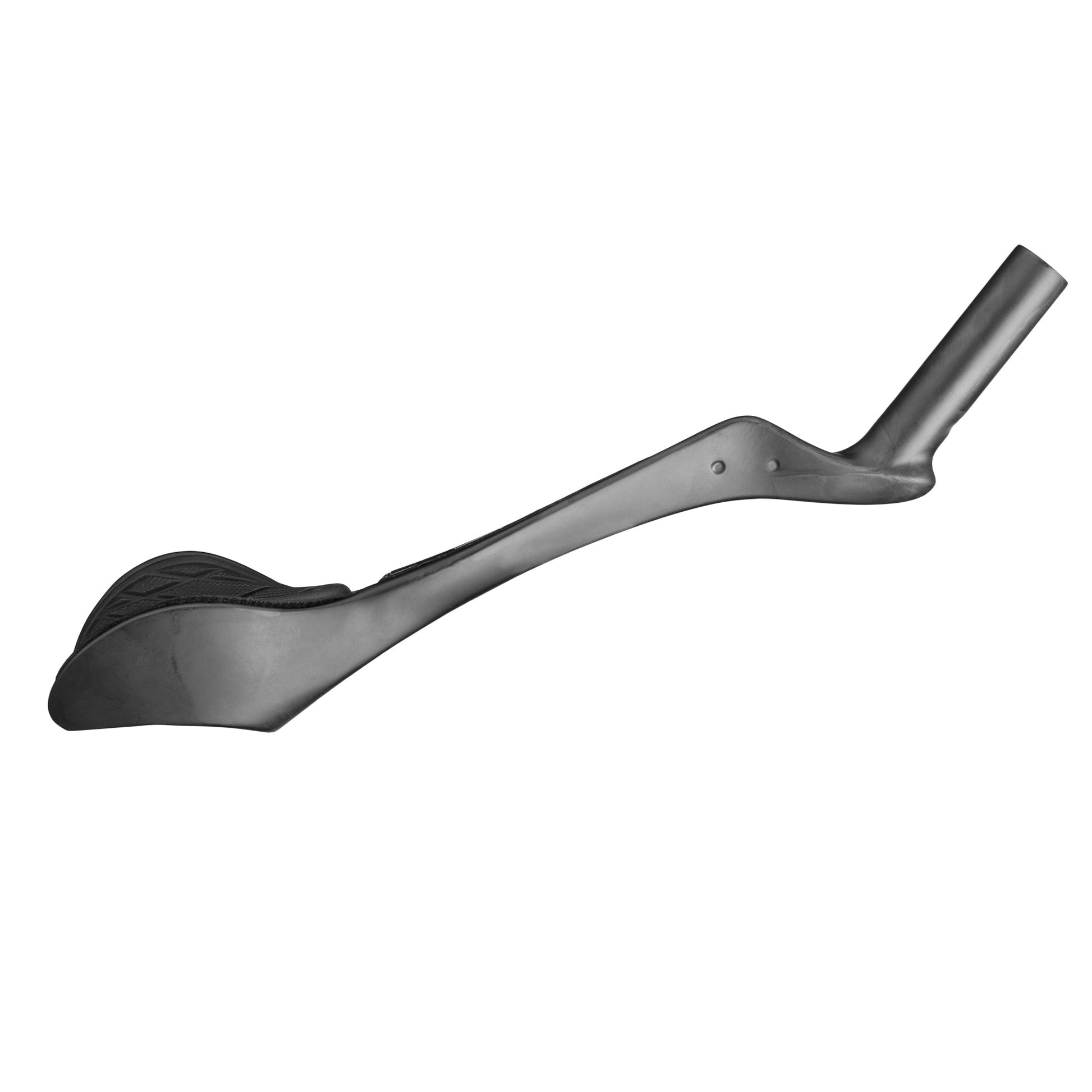

The ASC Pro brings Profile Design back into the one piece extension category that we pioneered with the Sonic Stryke nearly 20 years ago.

The ASC Pro extension body is not adjustable so there are three sizes – 325, 350 and 375mm long.

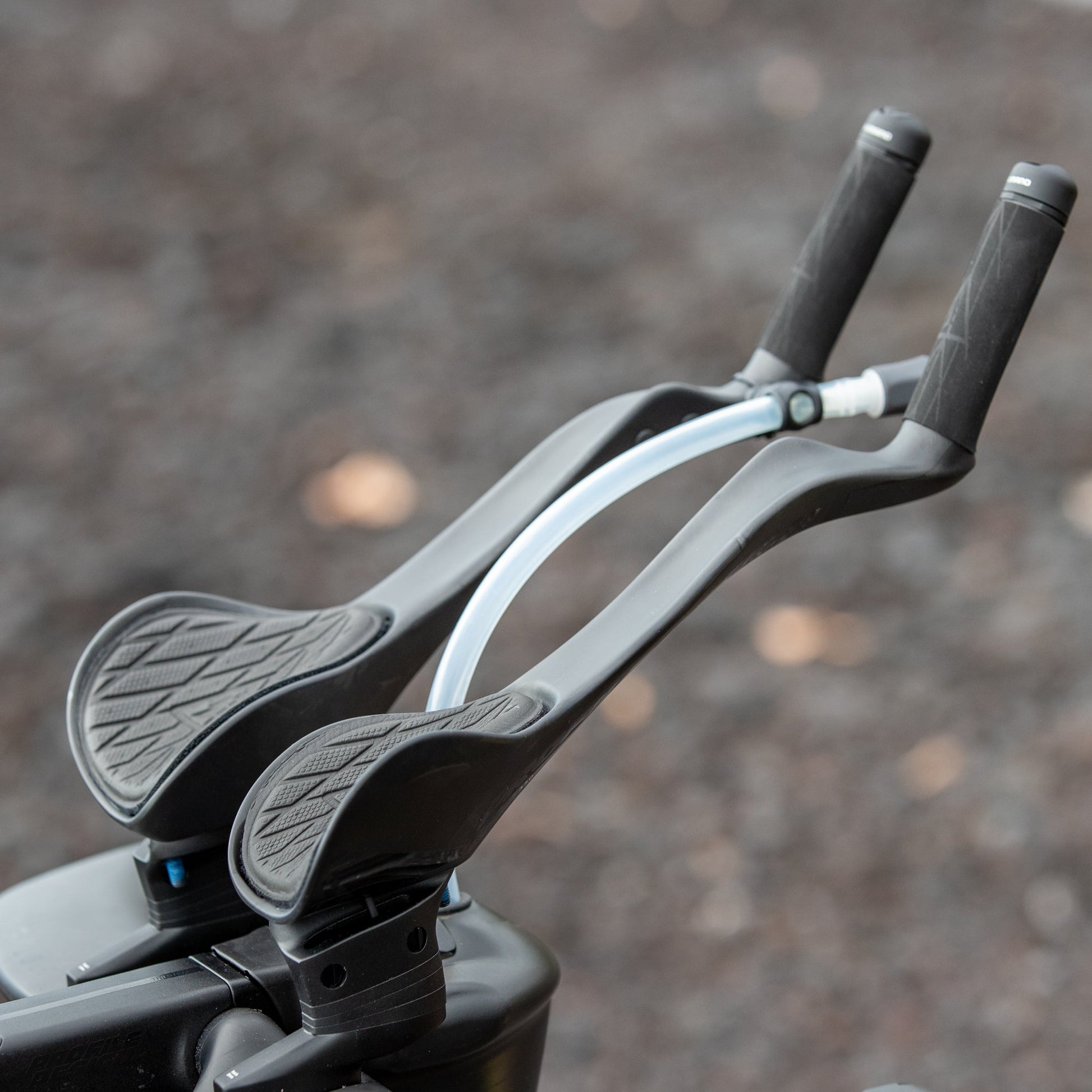

The ASC Pro offers one piece carbon construction and arm hugging comfort from the 43° grips all the way back to the high sided arm cups modeled on the Race+ shape.

The ASC Pro combines the comfort and aerodynamics of a custom bar with the flexibility needed for optimal position adjustment.

The extension is built with a 15° base angle, this can be adjusted by 10° and 25° with tilt wedges.

The brackets are compatible with the A3 Riser system, or an A2 Riser with the addition of the A2-A3 adapter.

Accessory Options: Sold Separately

Need a computer mount? ASC Extensions is to be paired with a ASC computer mount.

• ASC Computer Mount

Need to adjust your armrest position? The ASC Pro come with a 15mm offset bract but we offer a 5mm offset as well se below.

• ASC Pro Aerobar Bracket Kit

Know you stack height? The ASC Pro utilized the A3 riser platform. Before purchasing it is crucial to determine what your stack height may be and how many risers you will be using.

• A3A Riser Kit (Alimium) or A3A Carbon Kit

Know your extension angle?  The ASC Pro Tilt Wedges are available in increments of
1°, 2°, 3°, 4°, and 5°, allowing precise adjustment of the ASC Pro’s default 15° angle.

• ASC Pro Tilt Wedges

The A3 Reach extender does exactly what it says on the label – increases the pad reach of an A3 equipped bar by 32mm.

• A3 Reach Extender

Bolts kits for Profile Design ASC Pro Extension with use of Riser Kits and Wedges

• Aerobar Riser Bolt Kit

Tech Specs

• Extension Length: 325 / 350 / 375mm
• Extension Angle: 43° with 15° base angle
• Shifter Compatibility: Di2 and SRAM AXS Wireless

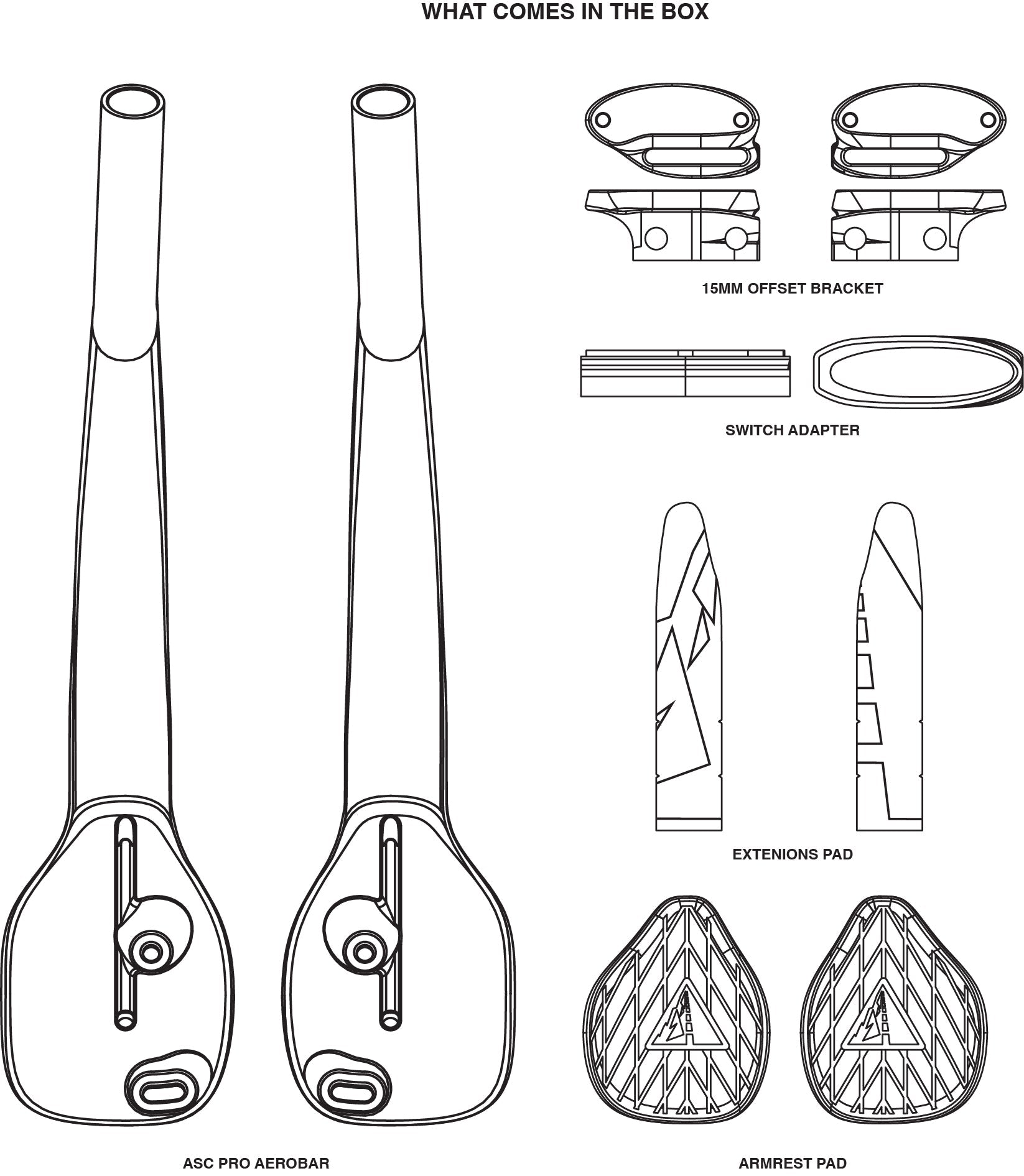

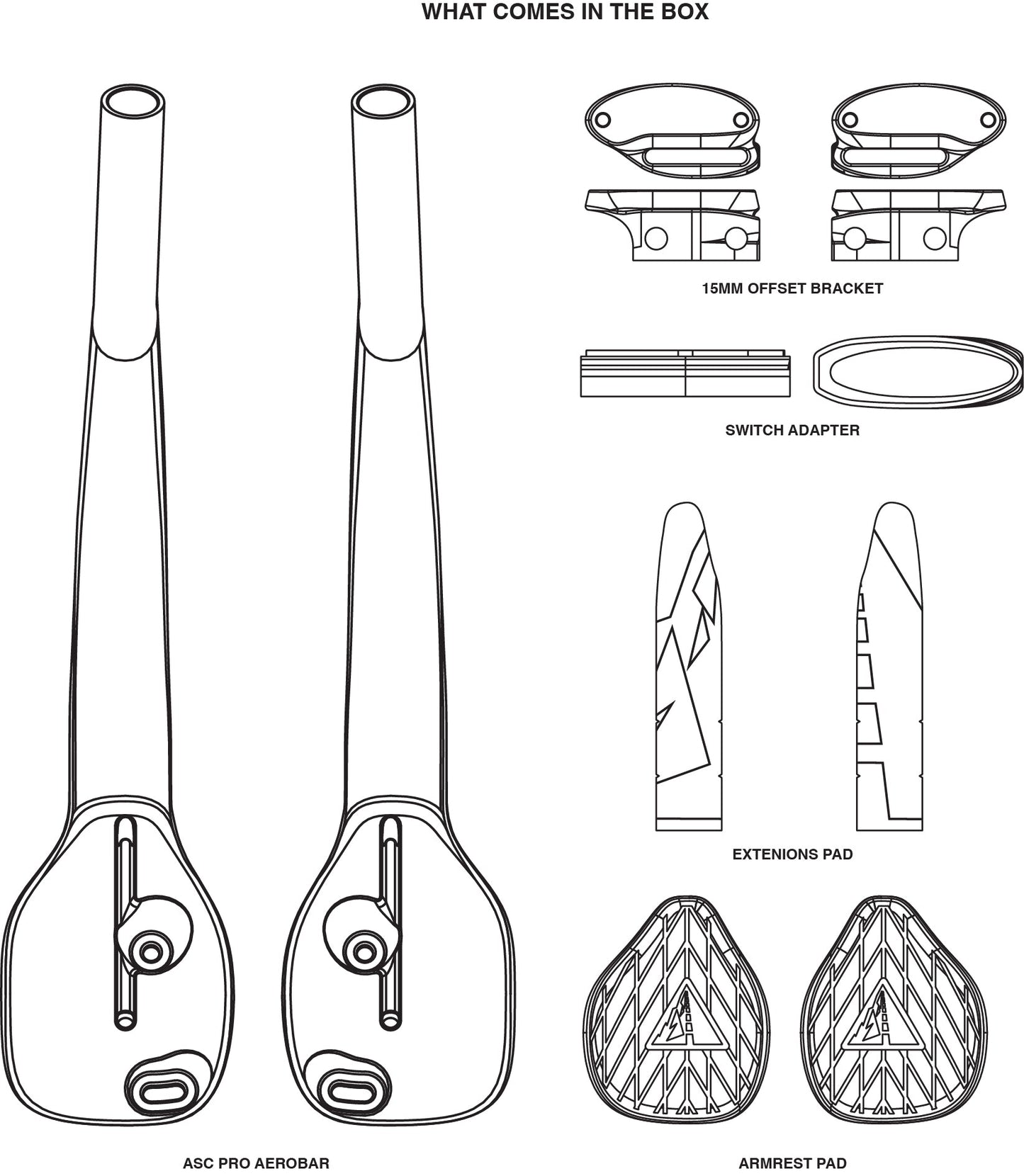

• Includes: Sold as a Pair (1 Right and 1 Left Extension), ASC Pro Switch Adapter, ASC Pro 15mm offset bracket, armrest and extension pads.

• Construction: Carbon
• Colors: Matte Black
• Weight: 325: 536g / 350: 549g / 375: 569g (pair)

Manual

ASC Pro Extensions Installation Instructions

ASC Pro Compatibility Guide
