Profile Design LLC

Low stock: 2 left

A3A Riser Kit

A3A Riser Kit

Regular price $199.00 AUD
Regular price Sale price $199.00 AUD
Sale Sold out
Tax included.

The A3 risers are designed specifically for the Wing 20C+ and Wing Ultimate.

The system is backwards compatible with A2 risers by using the A2/A3 adapter.

Key Features:

  • Compatible with the A3 riser system

  • Can be used with A2 riser system with adaptor

Tech Specs
  • Compatibility: Wing 20C+ and Wing Ultimate

  • Includes: Risers and Bolts specific to the kit size

  • Maximum Height: A3A Low Riser Kit = 35mm  and  A3A High Riser w/A2 Bridge Kit = 80mm

  • Weight:  35mm: 594g and 80mm: 726g (Complete Kit)

Tech Guide

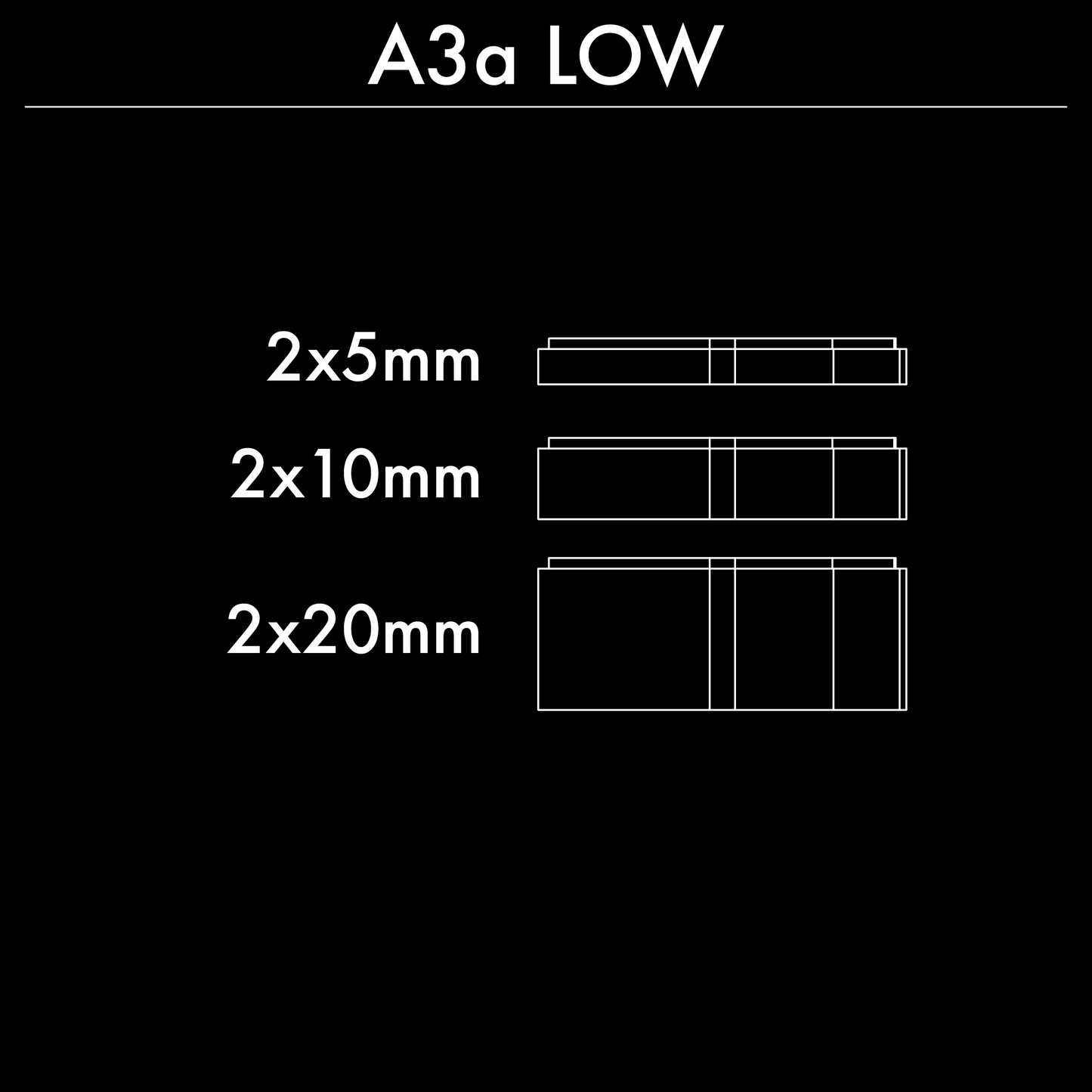

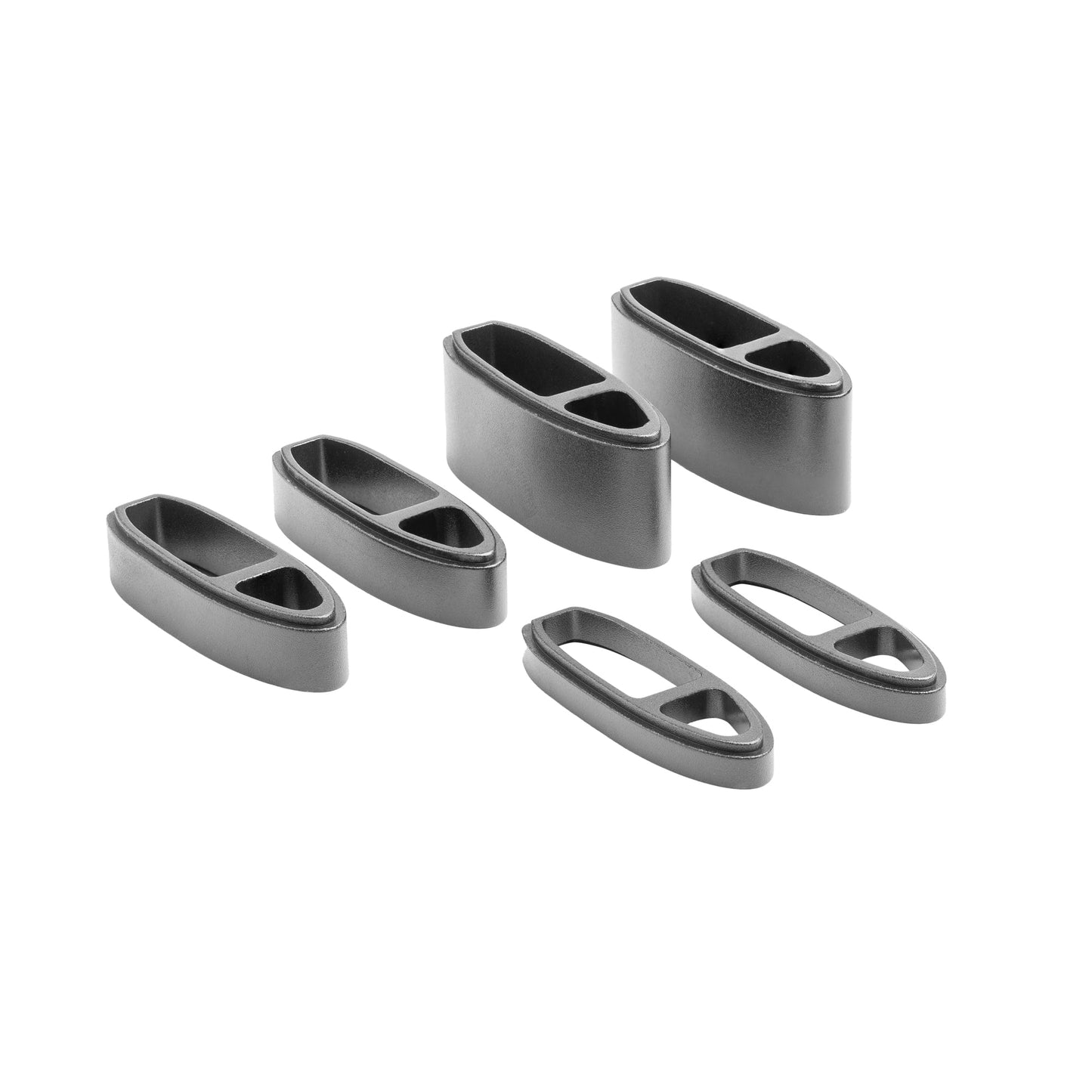

A3A Low Riser Kit Includes:

5mm: 2 Risers
10mm: 2 Risers
20mm: 2 Risers

45mm: 4 Bolts
50mm: 4 Bolts
55mm: 4 Bolts
60mm: 4 Bolts
65mm: 4 Bolts
70mm: 4 Bolts

75mm: 4 Bolts

Washer: 4 Washers

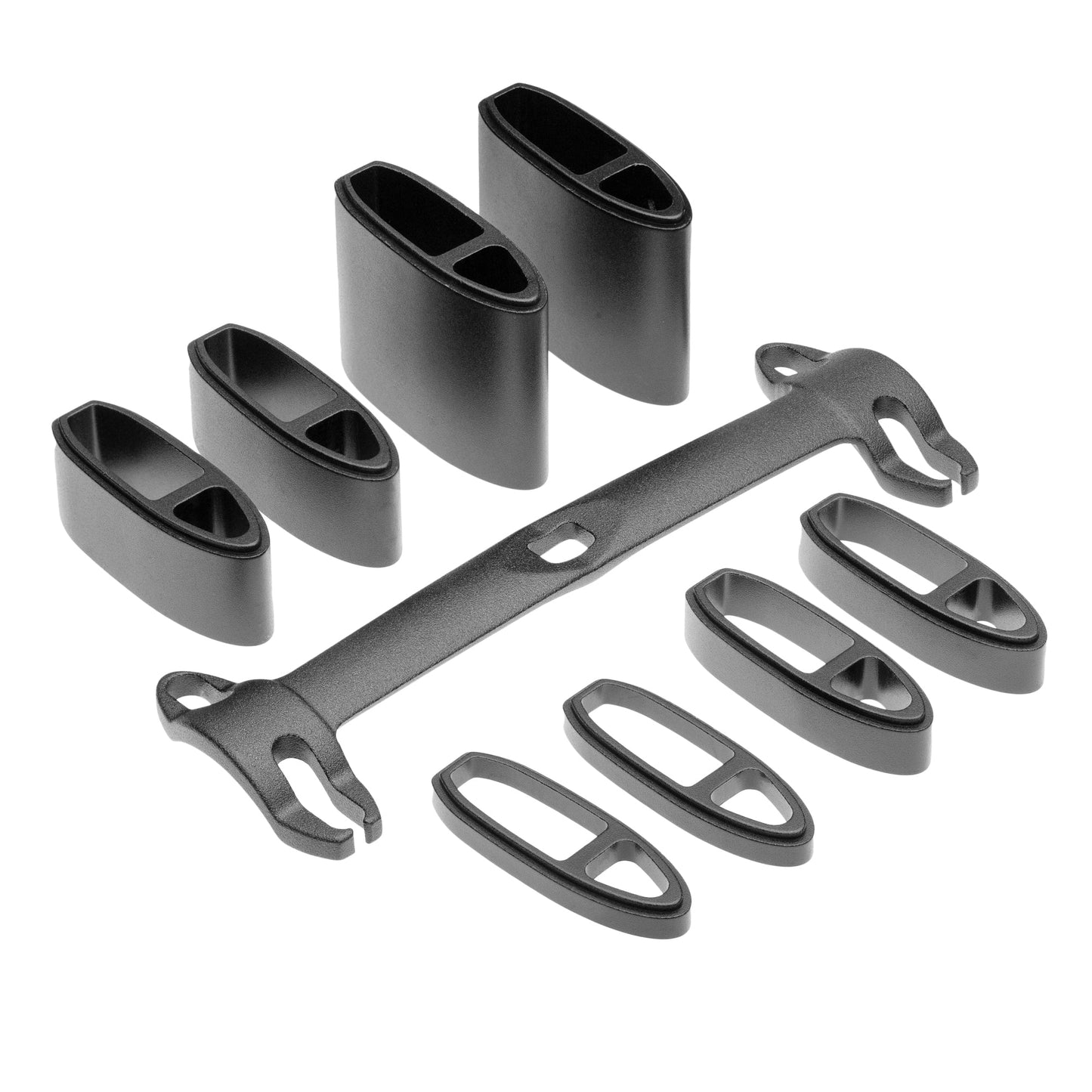

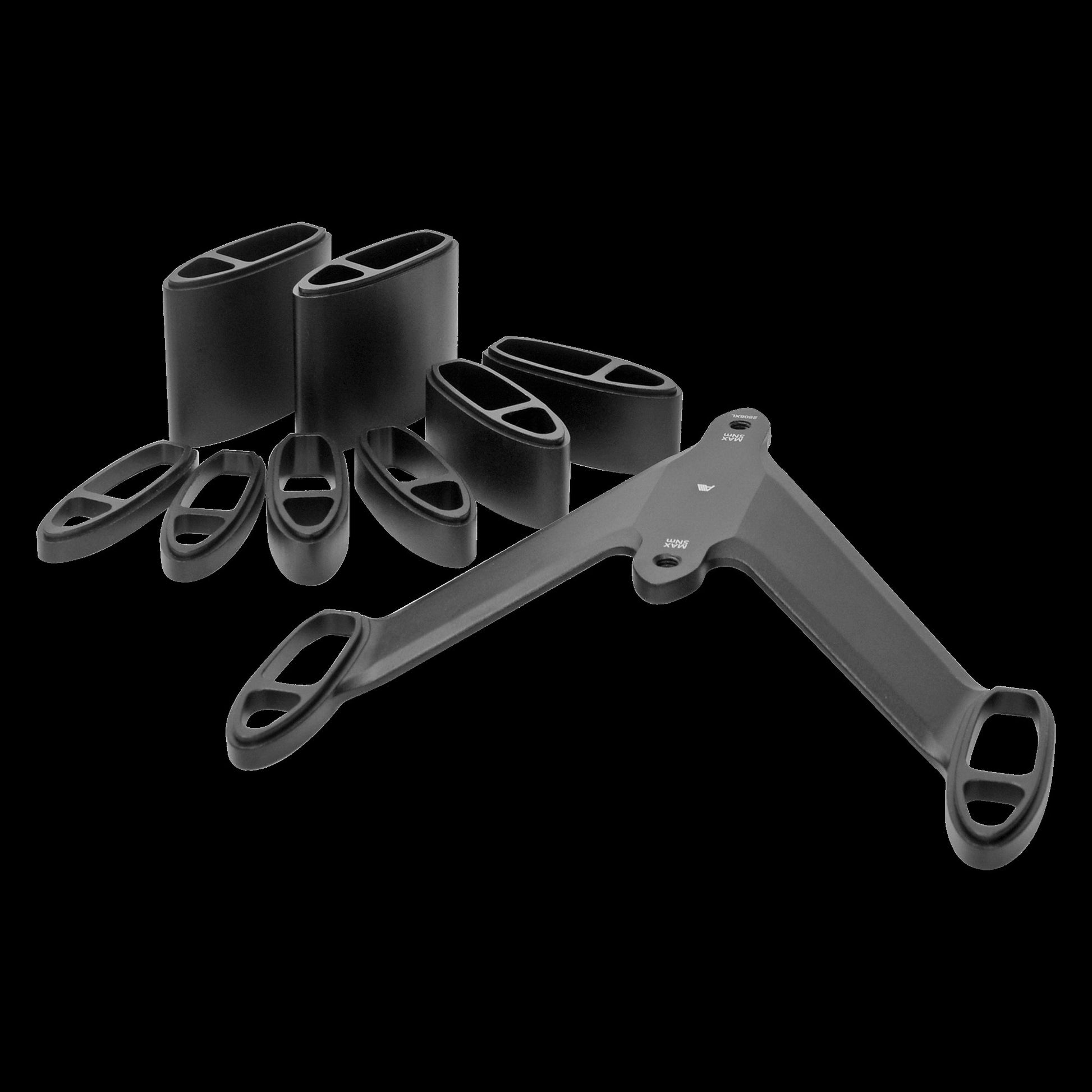

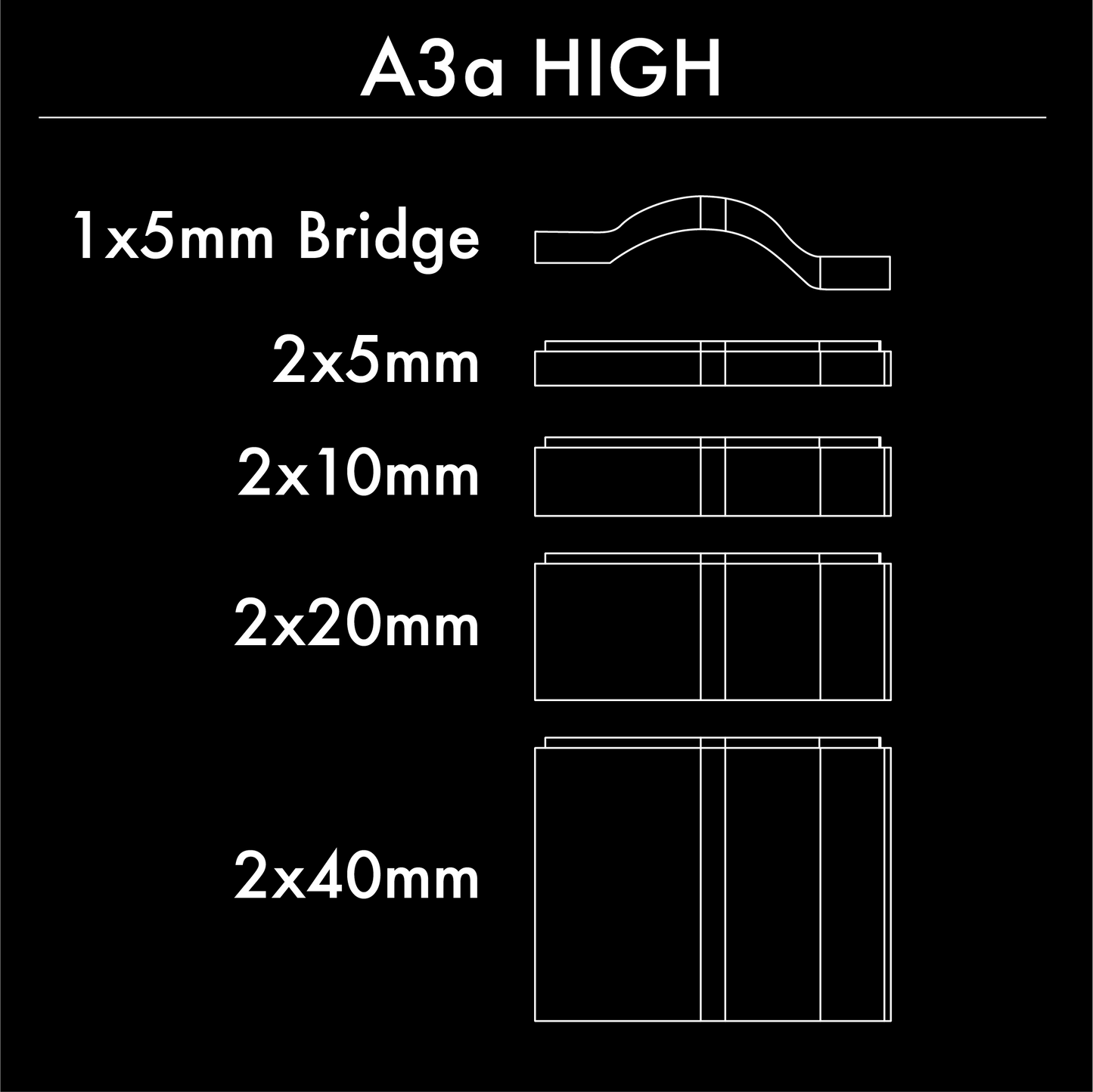

A3A High Riser w/A2 Bridge Kit Includes:

5mm: 2 Risers
10mm: 2 Risers
20mm: 2 Risers
40mm: 2 Risers

75mm: 4 Bolts
80mm: 4 Bolts
85mm: 4 Bolts
90mm: 4 Bolts
95mm: 4 Bolts
100mm: 4 Bolts

Washer: 4 Washers
A2 Bridge (5mm): 1 Bridge


A3 Riser Installation Instructions


  • Weight:  162g (100mm)
  • Length: 70, 80, 90, 100, 110, 120, 130mm (±17°)
  • Material:  3-D Forged 6061-T6 Aluminum
  • Clamp Diameter: 31.8mm
  • Angle: 73° (±17°)
  • Steerer Tube Diameter:  11/8in
  • Stack Height: 40mm
  • Clamp Width: 40mm
  • Clamp Tourque: 5Nm
  • Finish: Matte Black with White Accents
