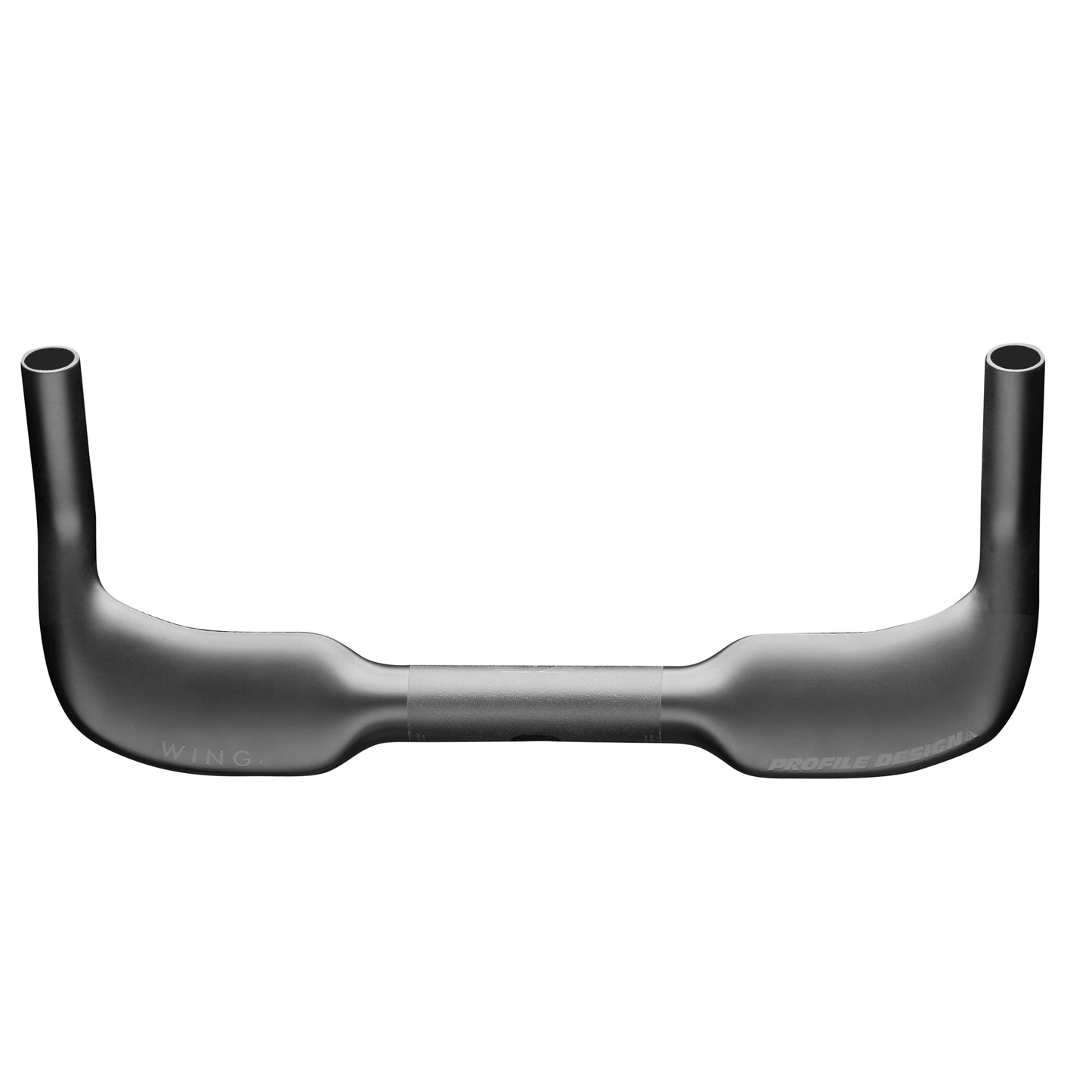

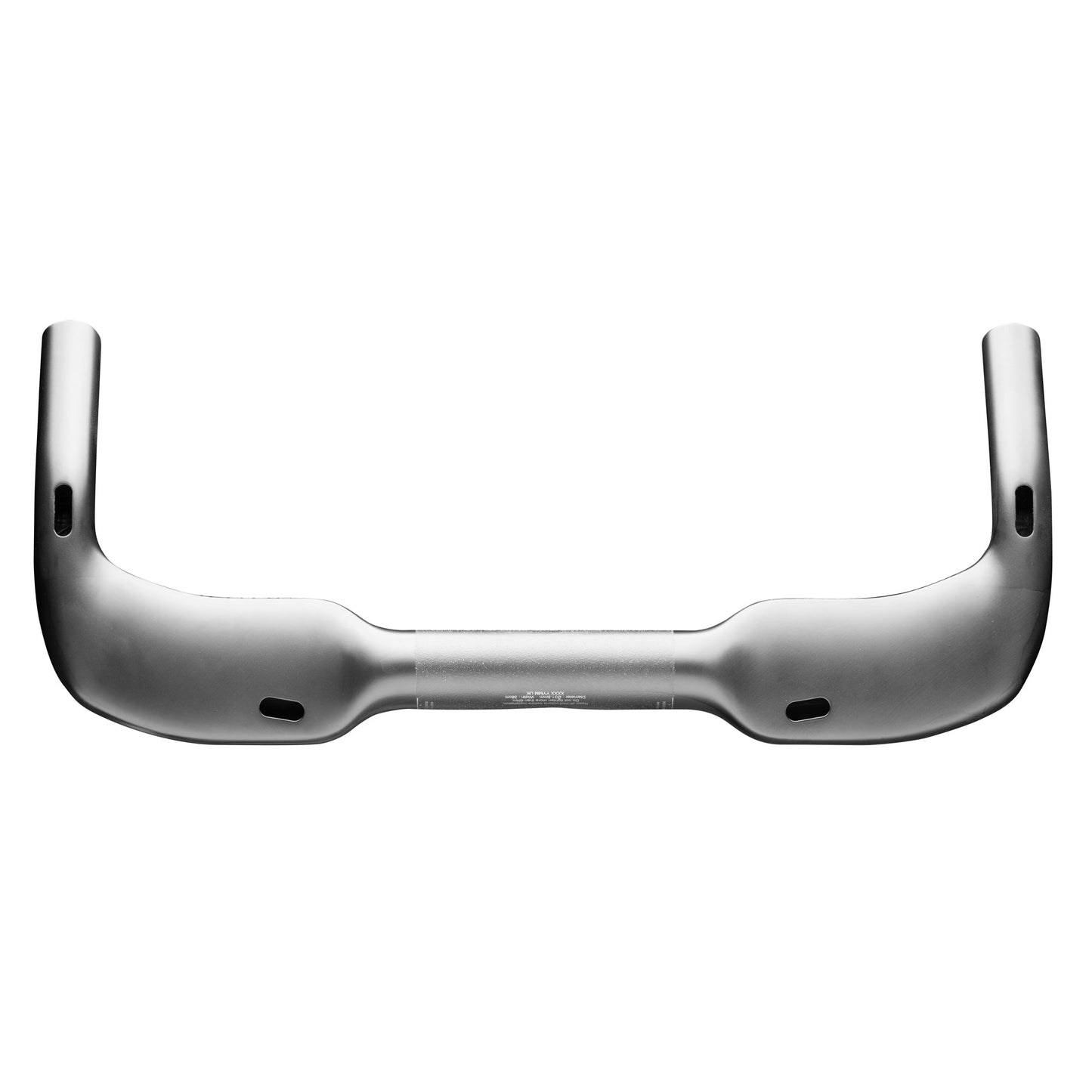

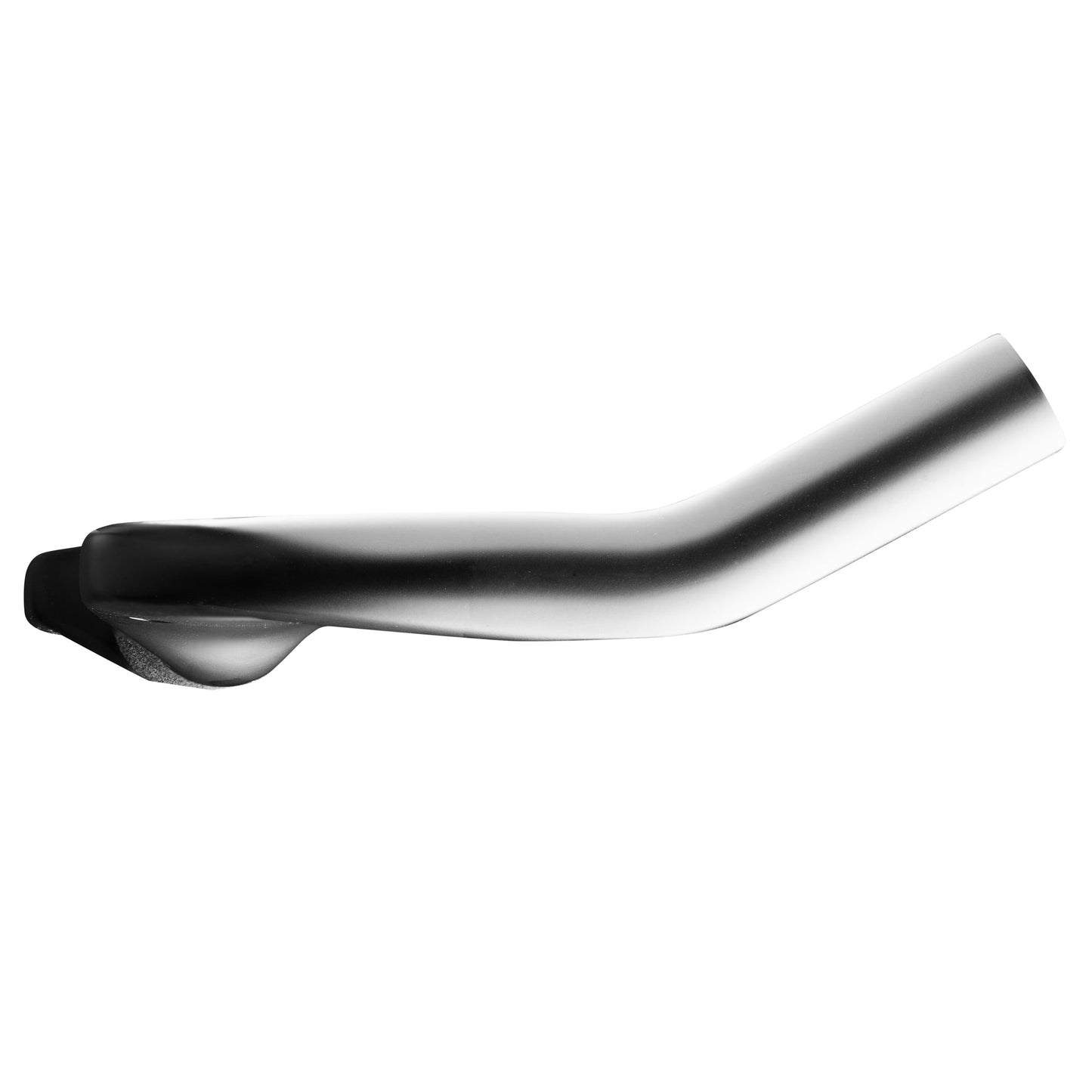

WING/C

Overview

 The WING/C features our new basebar shaping that is optimized for aerodynamics as well as strength and stiffness.  To this it adds an upturned hand grip to increase rider control.

The truncated aerofoil shape of the basebar is a key element of the balance between aerodynamics, strength and comfort.

Fit Data

• The WING/C is available in the following widths: 38, 40, 42cm
• New shape that transitions from the wing to the grip more smoothly -  aiding air flow and giving a better platform for the rider to rest their hands.

Accessories

The WING/C can be used with any Profile Design clip-on aerobar, brake lever and stem option.

Tech Specs

• Weight: 190-200g
• Width: 38, 40, 42cm (center to center)
• Center Clamp Diameter: 31.8mm
• Clamp Width: 100mm (on all bar sizes)
• Clip Compatible: Yes
• Material:  Carbon
• Finish: Matte Black
• Pursuit Reach: 137.5mm (center to tip)
• Stack: 41.6mm
• Pursuit OD/ID: 24 / 19.8mm
• Drop Outsweep: No

Tech Guide

• Only compatible with internally routed brake levers
• Di2 Compatible

Torque settings

• Stem Clamp: 6Nm
• Aerobar Clamp: 6Nm

Manual

WING/c Instillation Instructions
