WINGa

WINGa

Regular price $149.00 AUD
Regular price Sale price $149.00 AUD
Sale Sold out
Tax included.
Width
Overview

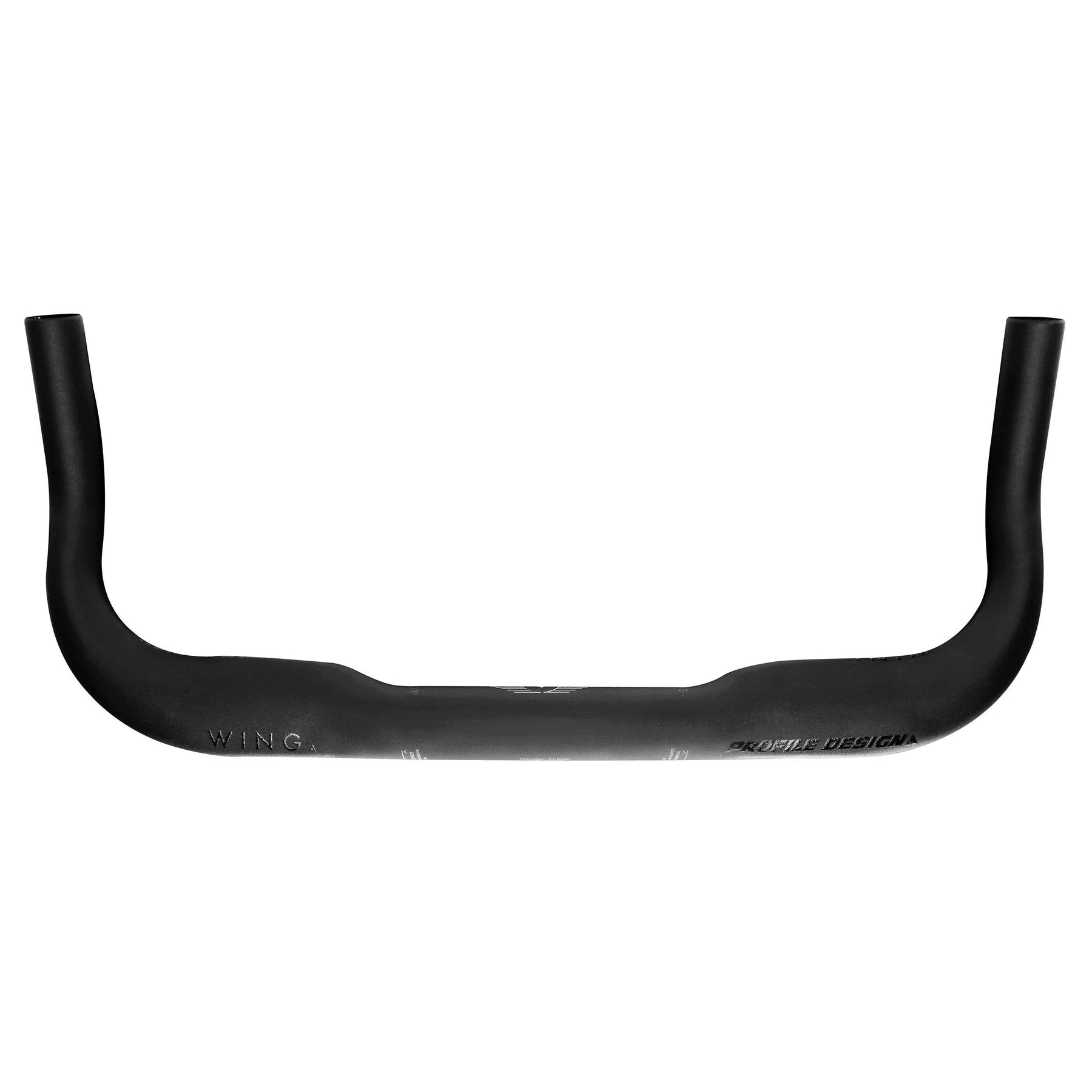

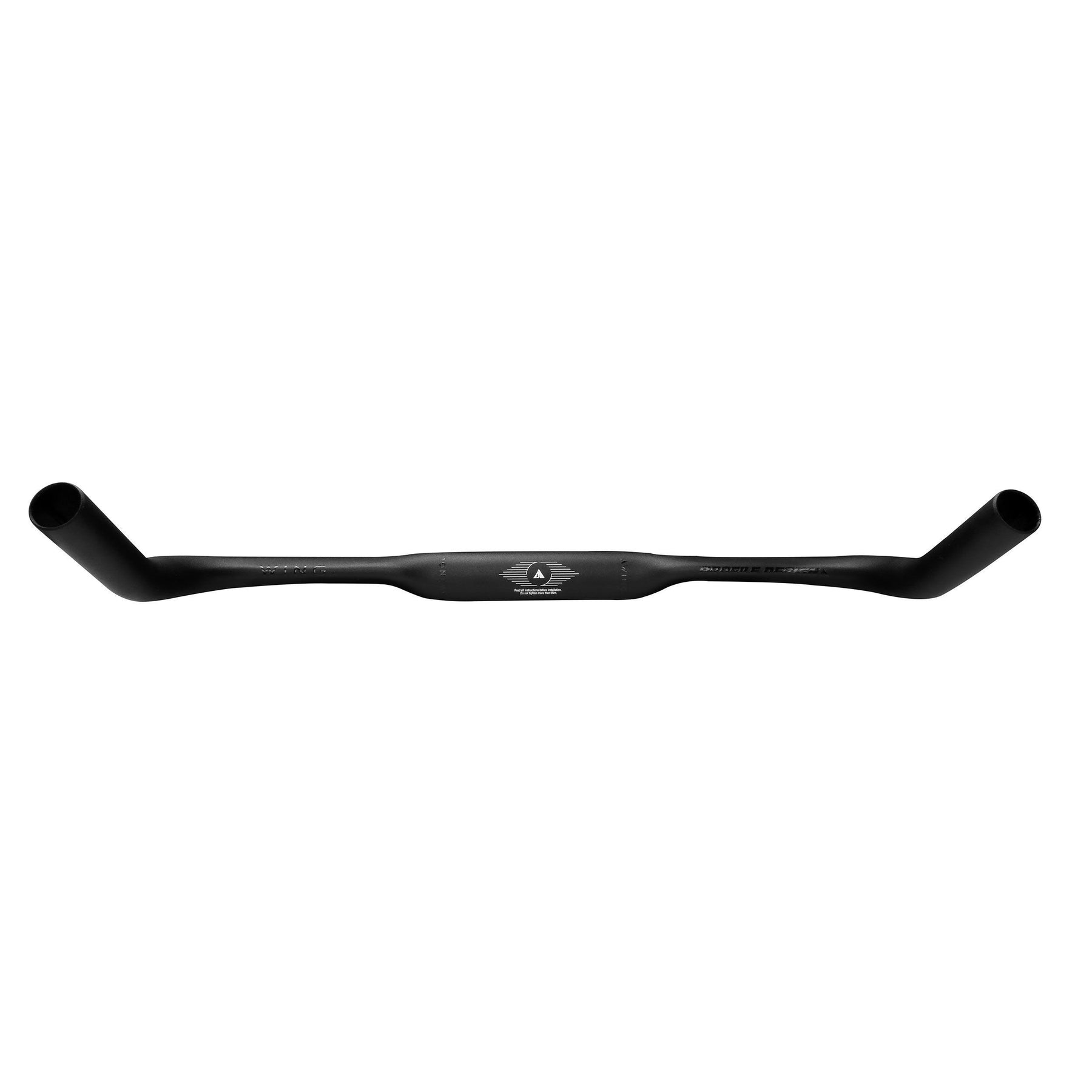

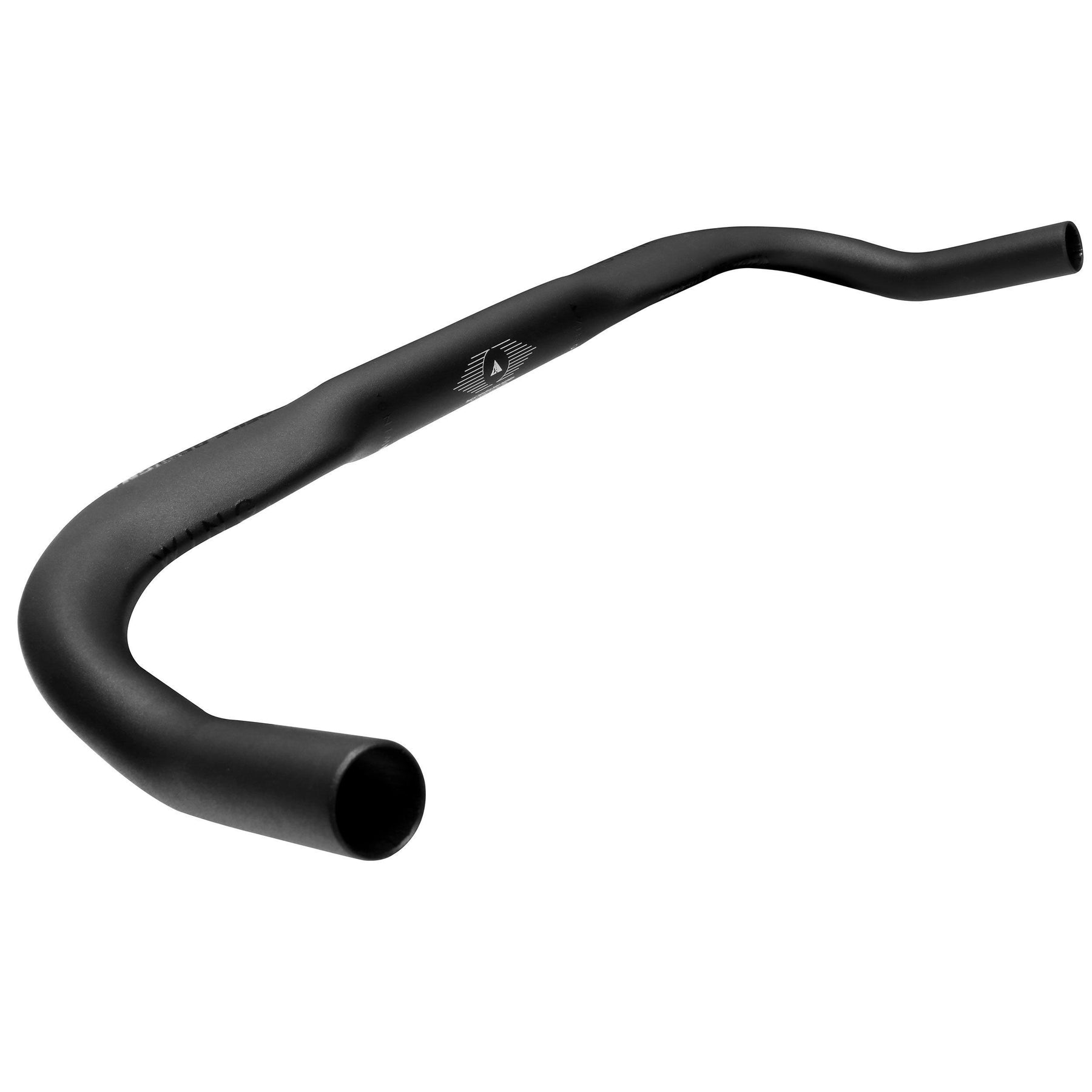

The WINGa is the successor to our popular T2 wing model.  It offers improved grip ergonomics and cable routing compared to the classic version.

Performance

The WINGa has a formed wing section for enhanced aerodynamics and routing designed to keep cables out of the wind.

Fit Data

The WINGa is available in a comprehensive size range to offer the correct fit for any rider.

The clamping area width increases as the width of the bar increases - to allow larger riders to use a wider elbow position in the aerobars.

Accessories

The WINGa can be used with any Profile Design clipon aerobar, brake lever and stem option.

Specs
  • Weight: 285g (42cm)
  • Width: 40, 42, 44, 46cm (center to center)
  • Center Clamp Diameter: 31.8mm
  • Clamp Width: 100, 120, 140mm (46cm)
  • Clip Compatible: Yes
  • Material:  6061-T6 AL
  • Finish: Matte Black
  • Pursuit Reach: 164.4mm (center to tip)
  • Pursuit Drop: 0
  • Pursuit OD/ID: 23.8 / 20.3mm
  • Drop Outsweep: No
Tech Guide

Torque settings

  • Stem Clamp: 6Nm
  • Aerobar Clamp: 6Nm
Manual

WINGa Instillation Instructions

    Specifications

    • Weight:  162g (100mm)
    • Length: 70, 80, 90, 100, 110, 120, 130mm (±17°)
    • Material:  3-D Forged 6061-T6 Aluminum
    • Clamp Diameter: 31.8mm
    • Angle: 73° (±17°)
    • Steerer Tube Diameter:  11/8in
    • Stack Height: 40mm
    • Clamp Width: 40mm
    • Clamp Tourque: 5Nm
    • Finish: Matte Black with White Accents
