profile design cycling
36 in stock

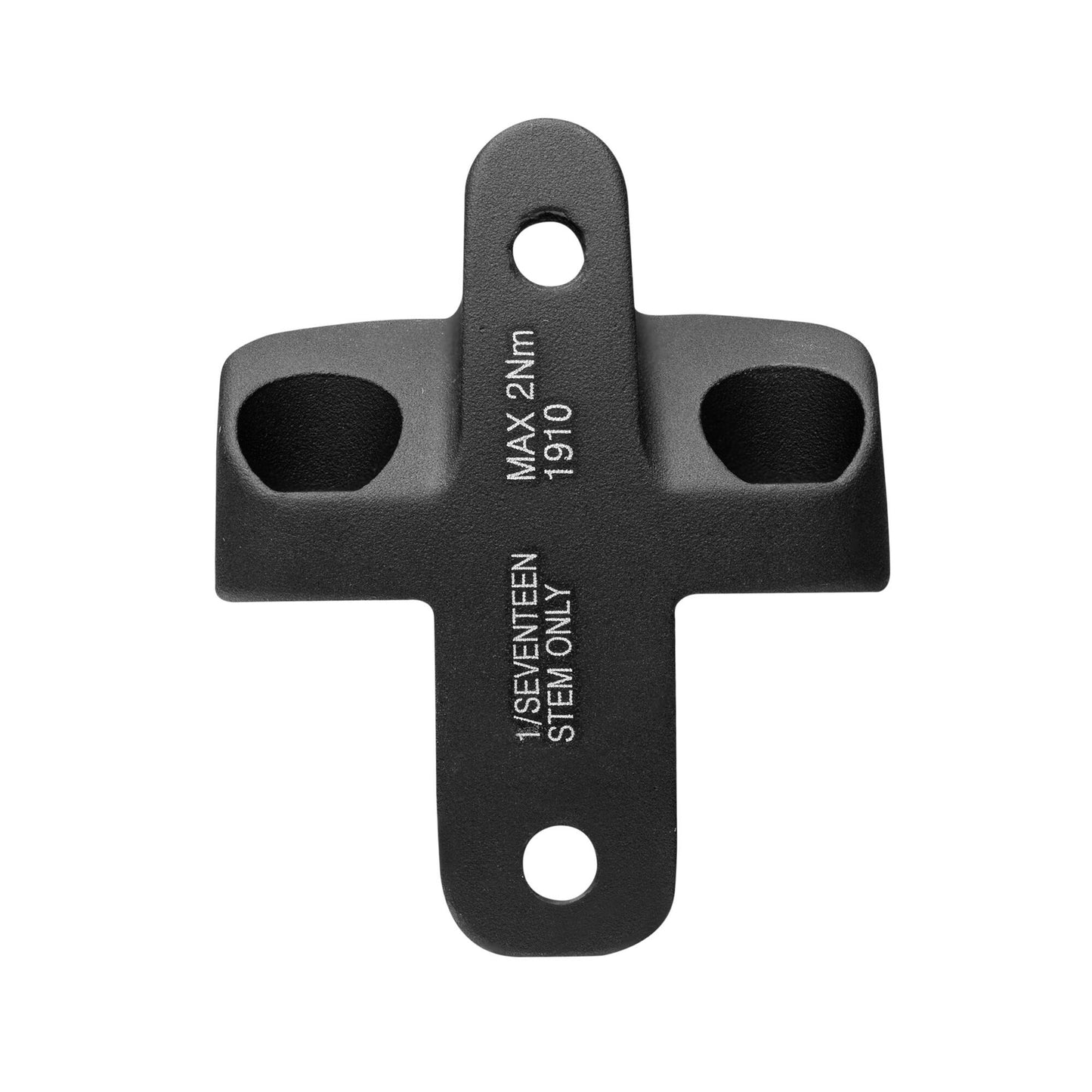

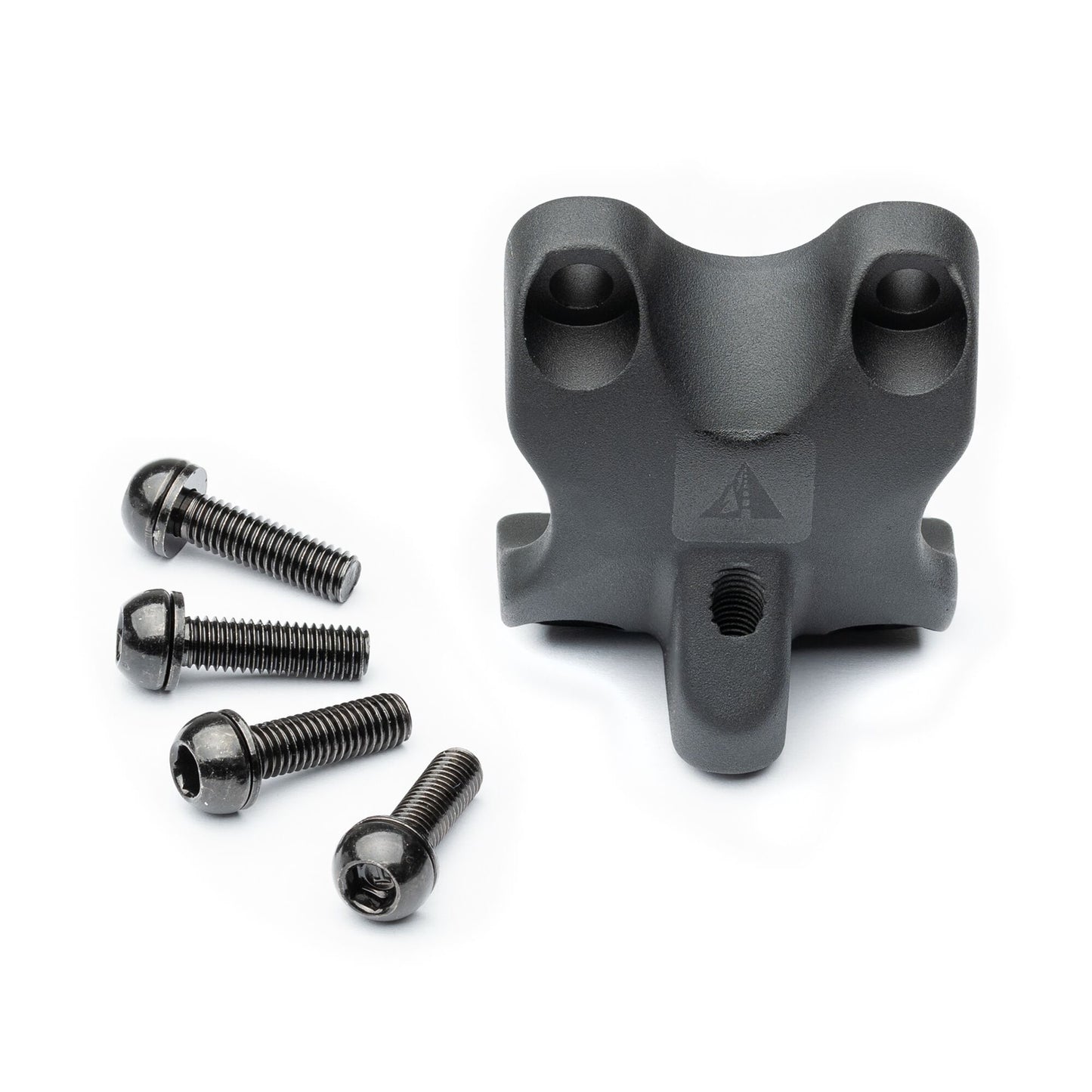

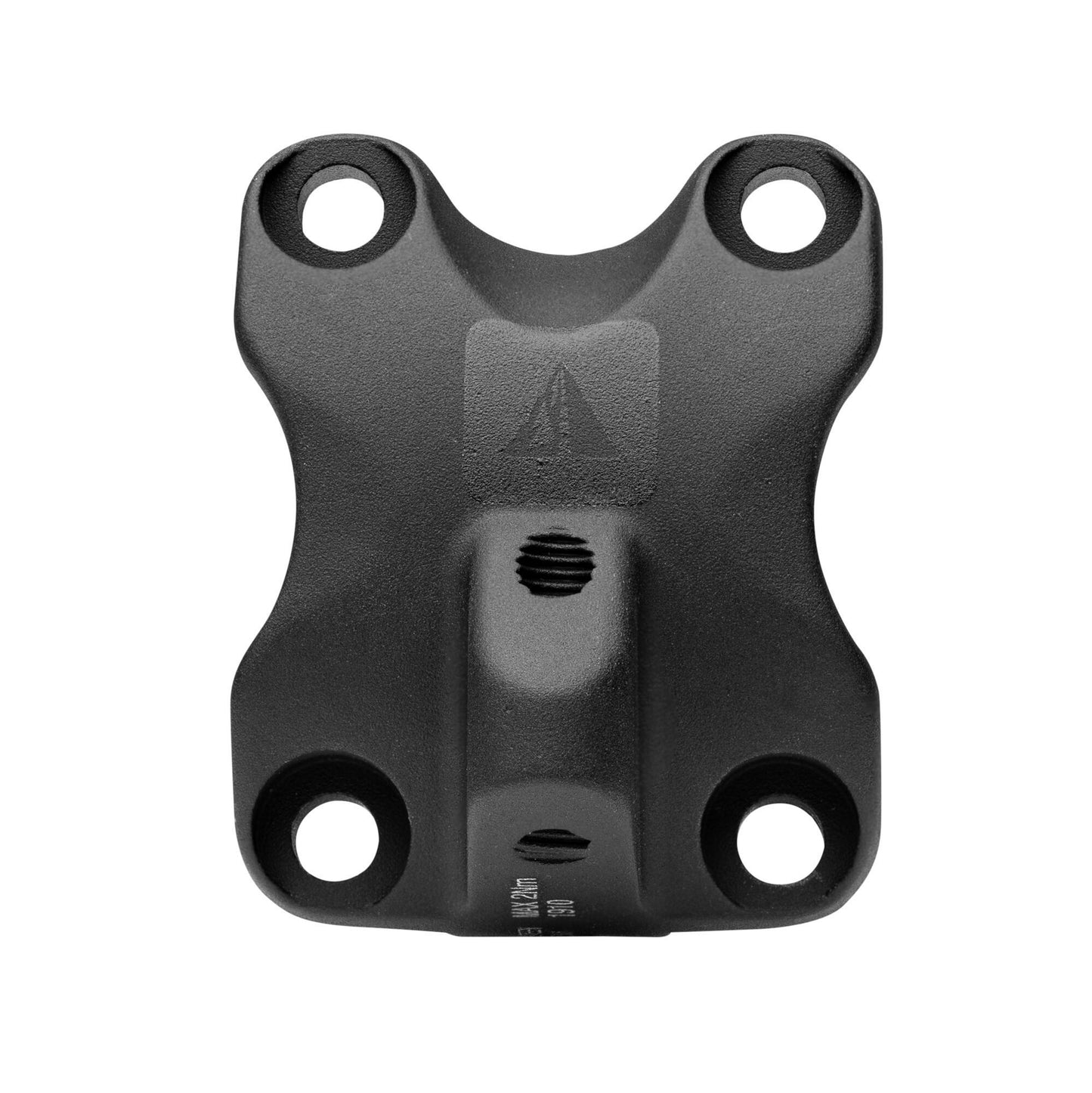

1/Seventeen Stem HSF Aeria Faceplate
1/Seventeen Stem HSF Aeria Faceplate
Couldn't load pickup availability
Overview

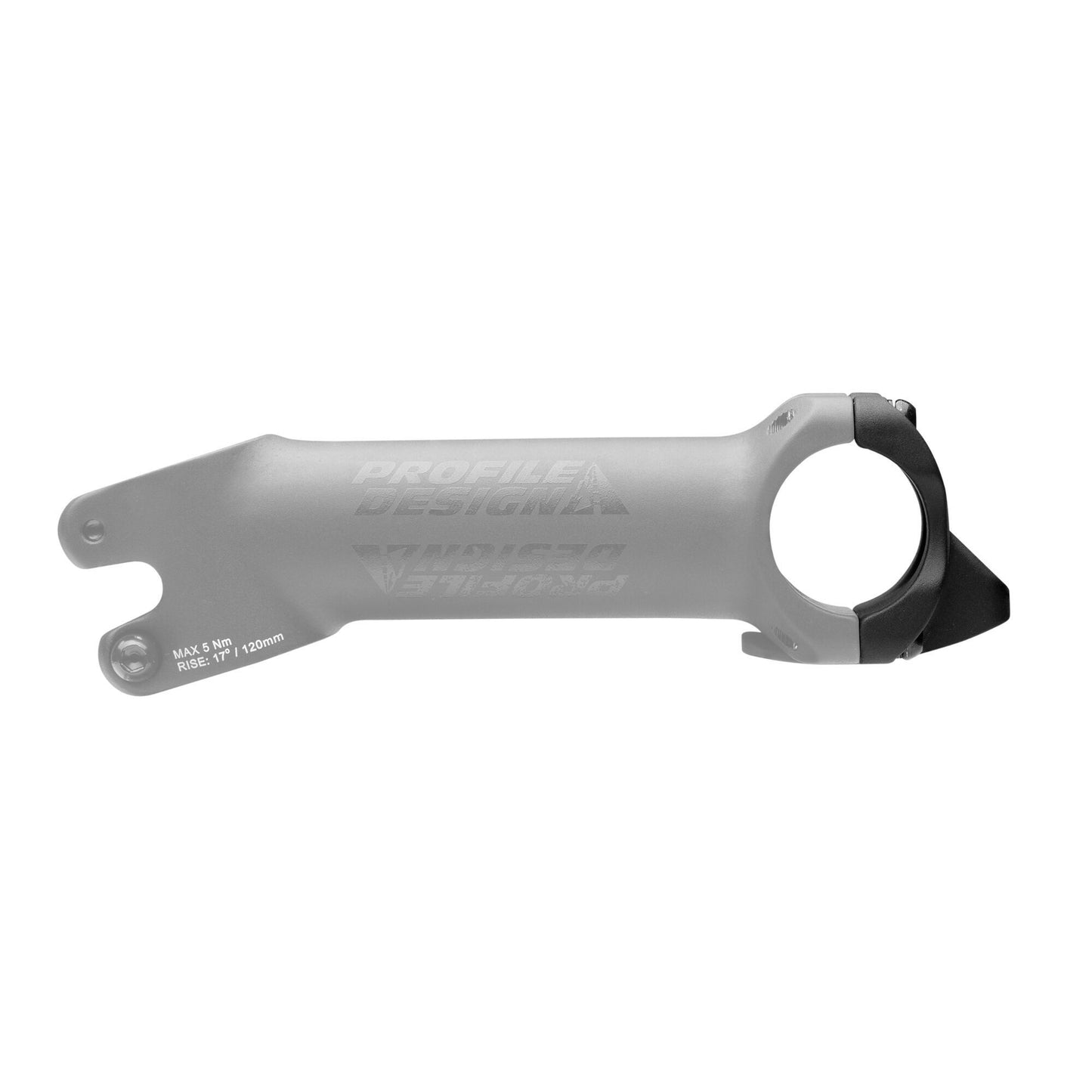

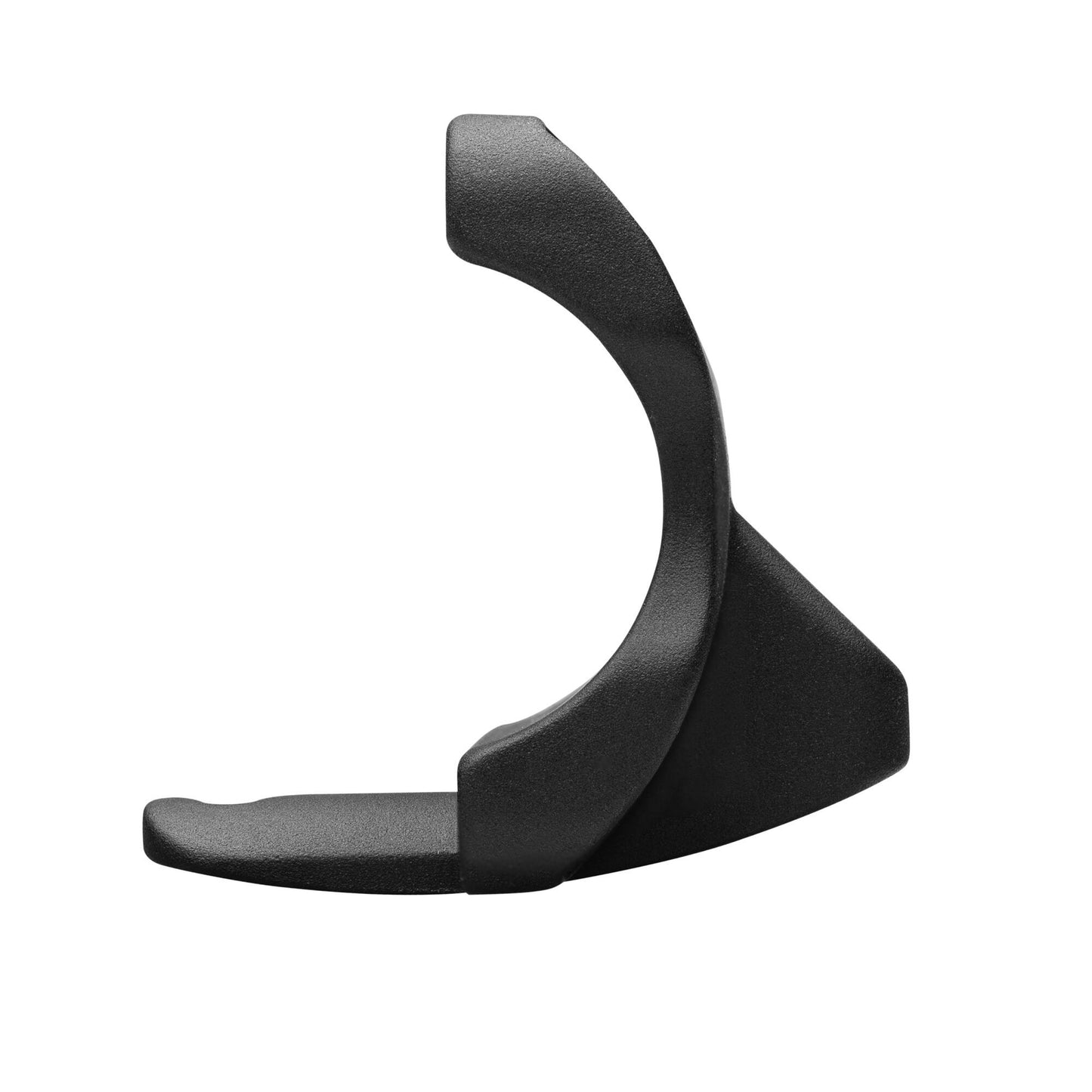

The HSF Stem Cap allows the Profile Design HSF/Aeria bottle to be fitted to our standard 1/Seventeen stem.
Performance
The HSF Aeria bottle smooth's airflow onto the frame, offering the chance to lower aero drag while increasing hydration carrying capacity. To this point it has required a specific stem – the new HSF Stem cap increases the options for access to the HSF Aeria technology
Compatibility
The HSF Stem cap is only compatible with the 1/Seventeen stem (not the 1/Seven) and the HSF Aeria bottle. It is recommended to be used with stem lengths of 90mm and above in order to avoid interference with the front brake
Tech Guide
- Material: 3-D Forged 6061-T6 Aluminum
- Clamp Diameter: 31.8mm
- Bar Clamp Tourque: 5-6Nm
- Clip Bolt (Front): 2Nm
- Clip Bolt (Rear): 2Nm
- Finish: Matte Black with Black Accents
- Weight: 40g
Manuel
Product Warnings
Canyon V21 stem and Profile Design HSF Faceplate Incompatibility
Specifications
Specifications
- Weight: 162g (100mm)
- Length: 70, 80, 90, 100, 110, 120, 130mm (±17°)
- Material: 3-D Forged 6061-T6 Aluminum
- Clamp Diameter: 31.8mm
- Angle: 73° (±17°)
- Steerer Tube Diameter: 11/8in
- Stack Height: 40mm
- Clamp Width: 40mm
- Clamp Tourque: 5Nm
- Finish: Matte Black with White Accents
