Gray metal bracket with multiple attachment points on a white background

A3A Riser Kit

Name: A3A Riser Kit
Brand: Profile Design
SKU: ACA3ALRSKT
Price: 199.0 AUD
Availability: OutOfStock

$199.00

Size

A3A Low Riser Kit (5/10/20mm)

A3A High Riser Kit (5/10/20/40mm w/ A3 BTA (5mm)

In stock, ready to ship
Backordered, shipping soon

The A3 risers are designed specifically for the Wing 20C+ and Wing Ultimate.

The system is backwards compatible with A2 risers by using the A2/A3 adapter.

Key Features:

Compatible with the A3 riser system
Can be used with A2 riser system with adaptor

Compatibility: Wing 20C+,Wing20c+II and Wing Ultimate
Includes: Risers and Bolts specific to the kit size
Maximum Height: A3A Low Riser Kit = 35mm and A3A High Riser w/A2 Bridge Kit = 80mm
Weight: 35mm: 594g and 80mm: 726g (Complete Kit)

Tech Guide

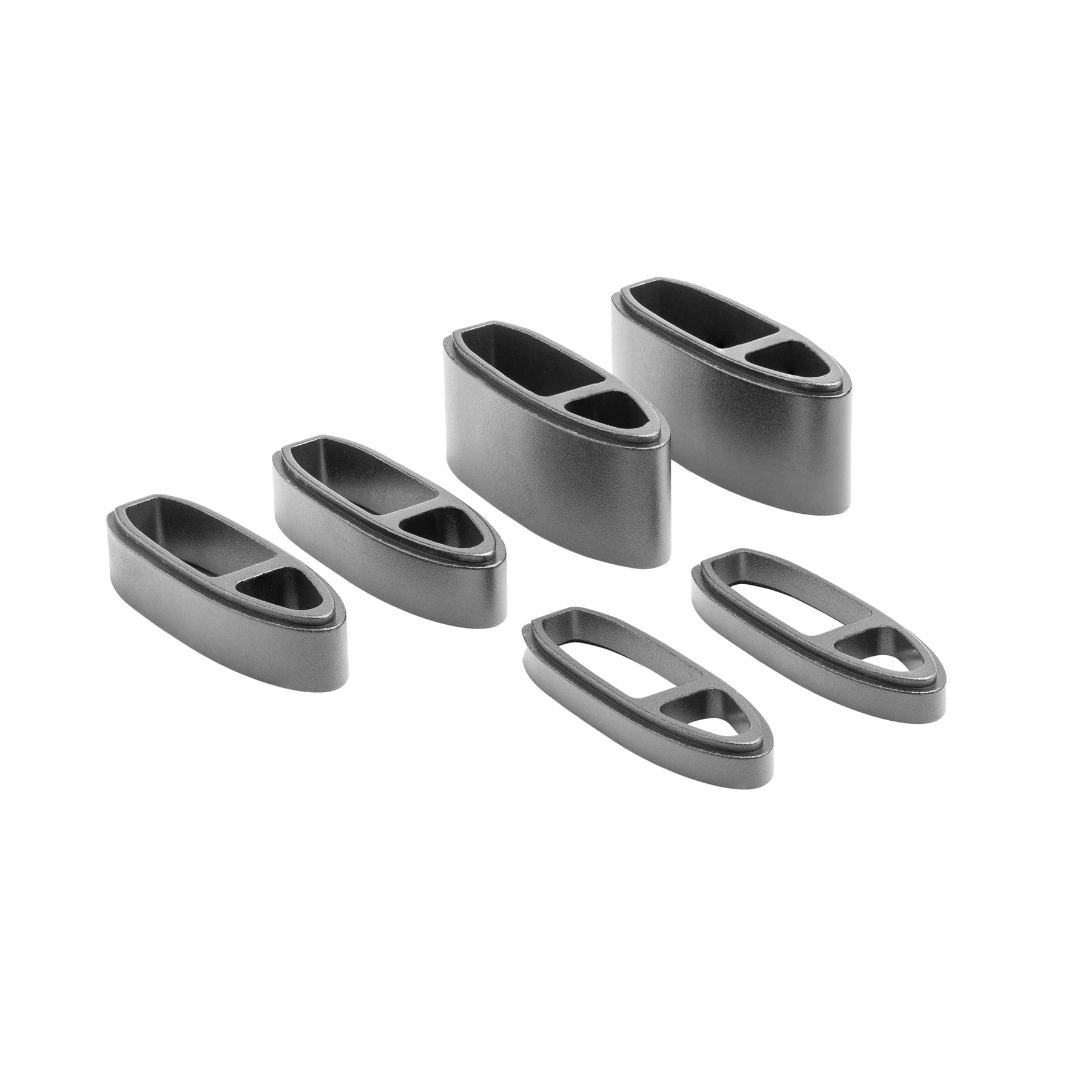

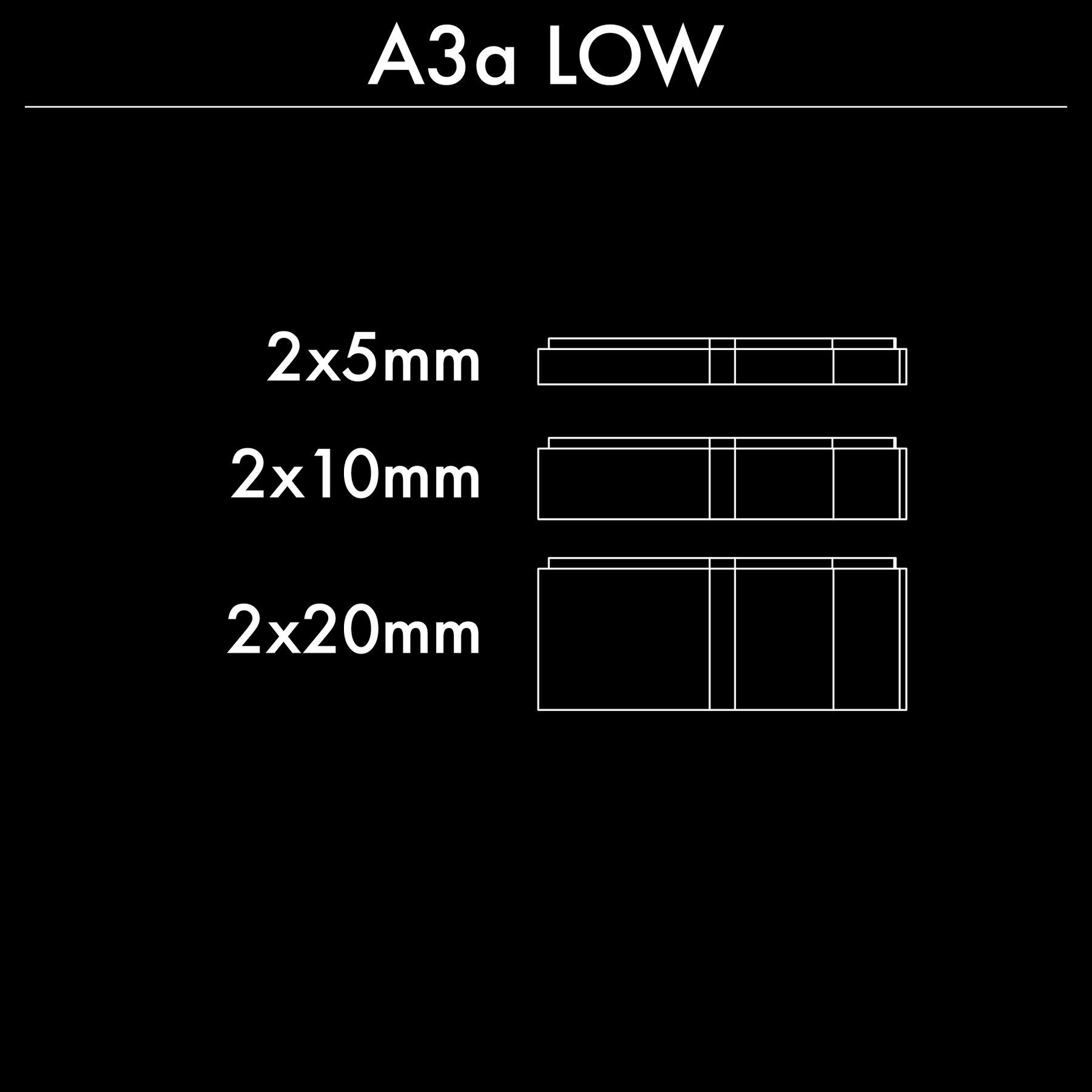

A3A Low Riser Kit Includes:

Risers:

5mm: 2 Risers

10mm: 2 Risers

20mm: 2 Risers

Bolts:

45mm: 4 Bolts

50mm: 4 Bolts

55mm: 4 Bolts

60mm: 4 Bolts

65mm: 4 Bolts

70mm: 4 Bolts

75mm: 4 Bolts

Accessories:

Washer: 4 Washers

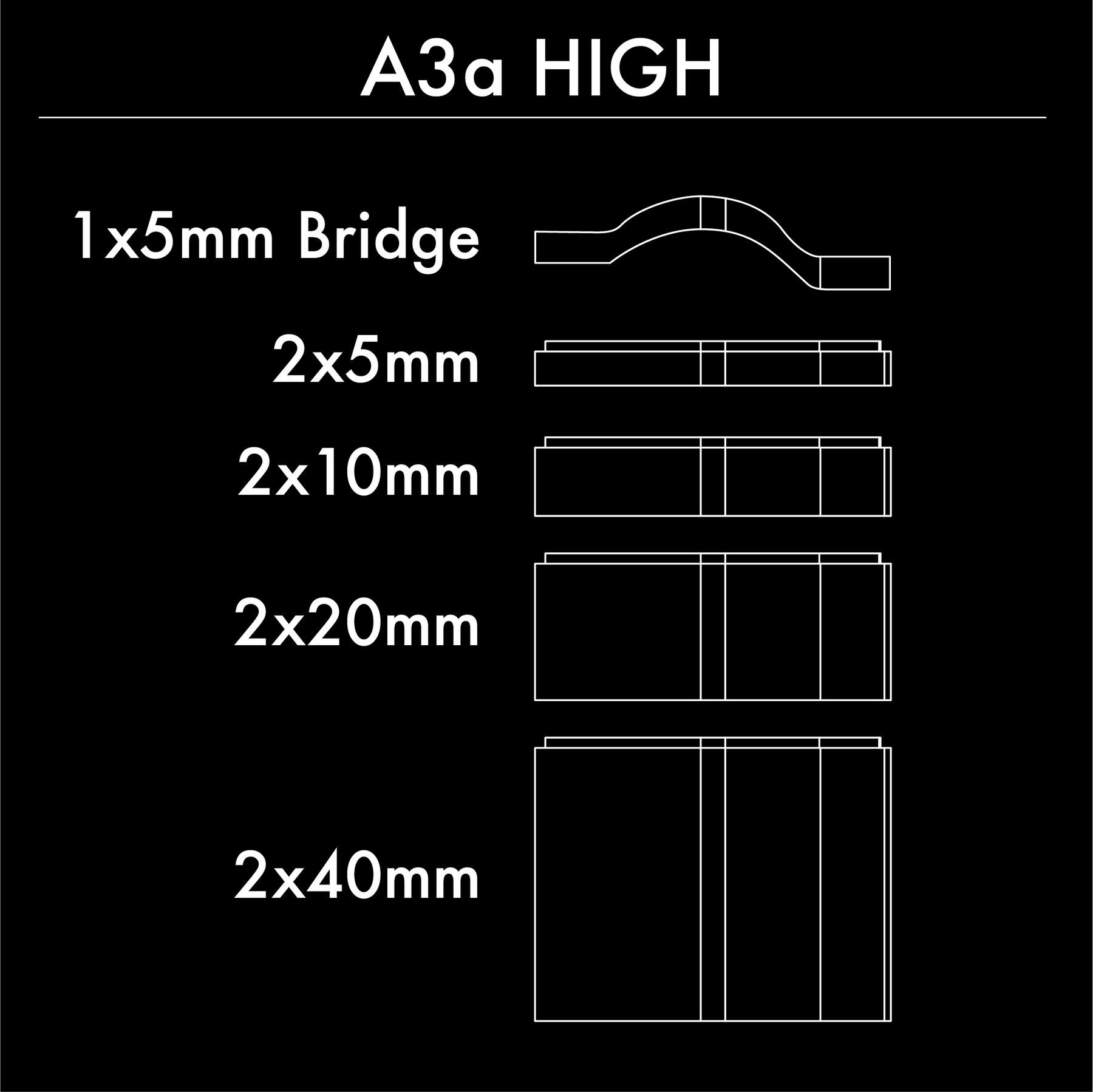

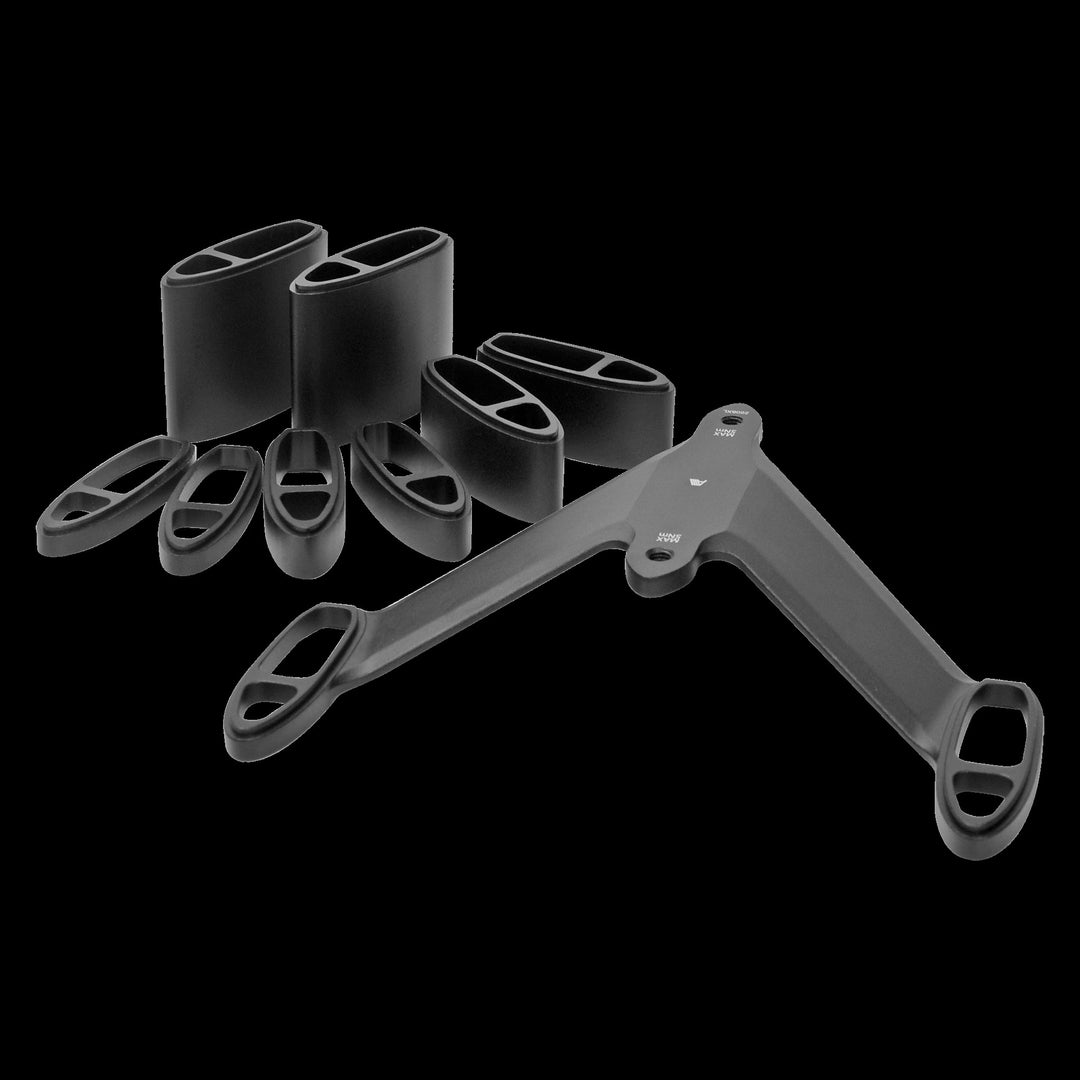

A3A High Riser w/A3 BTA Includes:

Risers:

5mm: 2 Risers

10mm: 2 Risers

20mm: 2 Risers

40mm: 2 Risers

Bolts:

75mm: 4 Bolts

80mm: 4 Bolts

85mm: 4 Bolts

90mm: 4 Bolts

95mm: 4 Bolts

100mm: 4 Bolts

Accessories:

Washer: 4 Washers

A3 BTA (5mm): 1 Bridge

A3 Riser Installation Instructions

Orders over $100 ship for free. Most orders place before 12pm (Melbourne time) leave the same day.

Orders placed after 12pm on a business day, or on a weekend, will ship the following business day.

Return unused and unopened items within 30 days for a refund.

Sale items are non-refundable.

All items are come with two year warranty.*

Click here to learn more about shipping.

Click here to learn more about our returns policy.

Installation & Compatilbility Information: Handlebar and aerobar combinations vary in compatibility. Follow the torque specifications in the installation instructions from each brand and confirm that all components are secure before every ride. If you’re unsure about brand compatibility or installation, please consult your authorized dealer, or CustomerService@profile-design.com

Warning: Do not transport a bike with our carbon product installed in a soft case. Do not use any bicycle part with visible damage. Carbon fiber or aluminum that has been impacted may not show visible damage, so if the part sustains a significant impact, stop riding it immediately and take it to your local retailer to be inspected. Any modification of our products OR the combining of Profile Design product with the use of any non-Profile Design parts, will void your warranty, as safety and compatibility have not been tested.

Follow all additional warnings and instructions for installation or find your product Instruction Sheet here.
